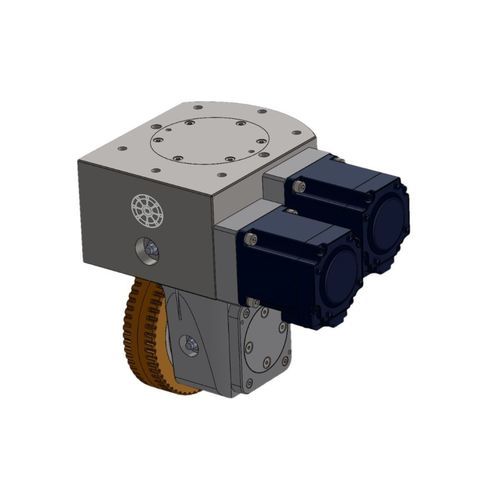

DC wheel motor PX series

48 Vretrofittingfor humanoid robot

Introduction
This product is an advanced omnidirectional steering wheel motor designed for intelligent mobile robots. It overcomes the steering-angle limits of conventional steer wheels, enabling continuous 360° rotation and true multi-directional movement. With a fixed wiring harness design, it eliminates cable wear and entanglement risks, extending the service life of critical electrical components by more than 10×. Suited for AGVs, AMRs, humanoid robot chassis and other mobile robotic platforms, it is proven reliable in demanding environments such as cold-chain logistics, factories and warehouses.

Features
Omnidirectional mobility without steering limitations

• Supports unlimited 360° continuous rotation, removing the traditional ±135° steering constraint.
• Enables lateral translation, zero‑radius turns and smooth navigation through narrow aisles and complex paths.
• Significantly improves maneuverability in dense, confined and dynamic operating environments.

Optimized wiring harness design for superior durability

• Fixed wiring harness architecture prevents repetitive bending, twisting and friction during steering motions.
• Eliminates cable wear and breakage risks at the root.
• Extends the service life of critical electrical connection components by more than 10×, reducing maintenance and operating costs.

High installation flexibility and simplified vehicle integration

• Compatible with a wide range of vehicle platforms and chassis configurations.
• Simplifies installation and integration, lowering engineering complexity.
• Helps shorten AGV development and retrofit cycles to improve deployment efficiency.

Excellent adaptability to diverse operating conditions

• Deployed successfully on humanoid robot chassis, e‑commerce sorting centers, 3C electronics manufacturing, pharmaceutical warehousing and similar applications.
• Capable of carrying loads above 300 kg while maintaining smooth, precise motion in fresh‑food cold‑chain environments down to −18°C.

Redefining mobile platform performance

• Provides system‑level optimization in motion freedom, electrical reliability and overall vehicle maneuverability.
• Designed for intelligent factories, automated warehouses and next‑generation robotic platforms requiring maximum mobility and flexibility.
• Enables AGVs and mobile robots to achieve greater versatility, efficiency and operational performance.

Specification
PX Series | PX12 | PX12‑X | PX16
Drive Unit - Load Capacity (kg): 200 | 200 | 800
Rated Voltage (V): 48 | 48 | 48
Rated Power (W): 200‑400 | 200‑400 | 600‑1000
Rated Speed (rpm): 3000 | 3000 | 3000
Drive Reduction Ratio (i): 15.7 | 15 | 15.7
Drive Wheel Speed (m/min): 0‑71 | 0‑75 | 0‑95
Brake Voltage (V): — | — | —
Steering Unit - Rated Voltage (V): 48 | 48 | 48
Rated Power (W): 200 | 100‑200 | 200‑400
Rated Speed (rpm): 3000 | 3000 | 3000
Maximum Steering Speed (°/s): 360 | 720 | 225
Steering Reduction Ratio (i): 50 | 25 | 80

Technical characteristics

• Model series: PX Series (examples: PX12, PX12‑X, PX16)
• Available models: PX12, PX12‑X, PX16
• Drive unit load capacity: up to 800 kg (PX16)
• Rated voltage: 48 V (drive and steering units)
• Drive rated power: 200‑400 W (PX12 / PX12‑X), 600‑1000 W (PX16)
• Drive rated speed: 3000 rpm
• Drive reduction ratio: 15.7 (PX12, PX16), 15 (PX12‑X)
• Drive wheel speed: 0‑71 / 0‑75 / 0‑95 m/min (PX12 / PX12‑X / PX16)
• Steering rated power: 200 W (PX12), 100‑200 W (PX12‑X), 200‑400 W (PX16)
• Steering rated speed: 3000 rpm
• Maximum steering speed: up to 720 °/s (PX12‑X)
• Steering reduction ratio: 50 / 25 / 80 (PX12 / PX12‑X / PX16)
