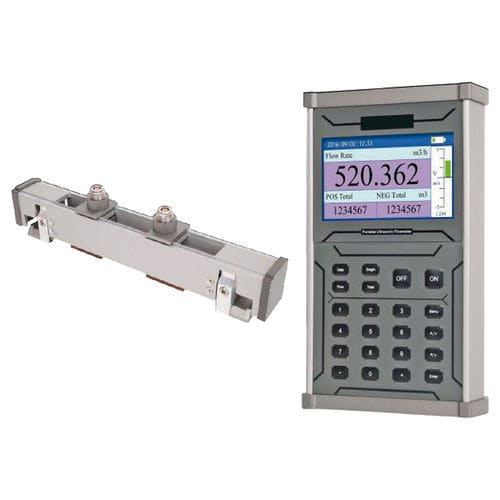

Ultrasonic transit-time flow meter MTTHSLP

volumeDN25 - 1"clamp-on

Description
The MTTHSLP clamp-on portable ultrasonic flowmeter provides non-intrusive flow measurement for a wide range of pipe installations. The transmitter is housed in a metal enclosure with high wear and corrosion resistance. The unit features ergonomic handheld operation, a backlit colour display and a rechargeable lithium-ion battery enabling approximately 12 hours of continuous use. Supplied clamp-on transducers use powerful ultrasonic pulses and improved signal processing; a single transducer set covers pipes from DN25 to DN5000. Measurement data are stored on the supplied 2GB SD card for long recordings and transfer to external systems.

Measurement / Detection / Technology
Measurement: Flow / Flow rate
Detection: Flow / flow rate
Technology: Transit-time ultrasonic pulse

Features and benefits

• Accuracy: 0.5% of measured value
• Repeatability: 0.15%
• Clamp-on transducers for non-intrusive, easy installation
• Durable metal transmitter enclosure with high wear and corrosion resistance
• Wide operating temperature range: -40°C to +120°C
• Rechargeable lithium-ion battery providing approx. 12 hours continuous operation
• 2GB SD card for data logging and transfer

Technical specifications

• Model: MTTHSLP
• Type: Clamp-on portable ultrasonic flowmeter (transit-time)
• Pipe size range: DN25 to DN5000
• Accuracy: 0.5% of measured value
• Repeatability: 0.15%
• Operating temperature: -40°C to +120°C
• Power: Rechargeable lithium-ion battery (approx. 12 h continuous)
• Display: Backlit digital colour display
• Data storage: SD card (2GB supplied)
• Transducers: Clamp-on, single set suitable for wide range of pipe sizes
• Transmitter enclosure: Metal, high wear and corrosion resistance
• Accessories: Protective carrying case and easy-to-install mounting racks
• Measurement method: Ultrasonic pulse transit-time with improved signal processing
