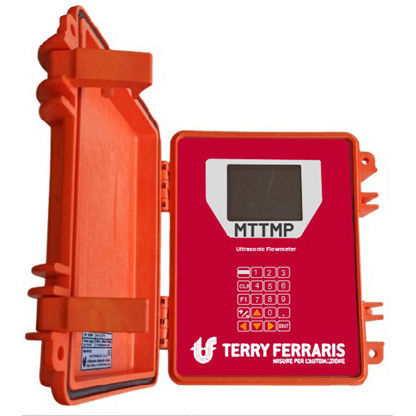

Ultrasonic transit-time flow meter MTTMP

volumefor wastewaterfor liquids

Product overview
The MTTMP is a one- or two-channel ultrasonic transit-time flow meter for measuring flow in pipes and ducts. It comprises an advanced DSP-based processing unit and up to four velocity transducers. Ultrasonic pulses are transmitted upstream→downstream and downstream→upstream at an angle α to the flow; the transit time difference is proportional to liquid velocity. Clamp-On transducers mounted externally do not obstruct the flow and avoid pressure drop.

Performance and signal processing
The meter’s DSP unit with Cross Correlation and Fast Fourier Transform (FFT) processing enables reliable operation in demanding applications, including liquids with high suspended solids, significant air content or high acoustic noise. The system can deliver two independent measurements with a combined maximum of 2 chord planes.

Measurement / Detection / Technology
Measurement: Flow / Flow rate; Electronics
Detection: Flow / Flow rate
Technology: Transit-time ultrasonic measurement

MTTMP Features

• Clamp-On or insertion transducers
• Patented Anti-Round Technology
• Speed measuring range: 0.02 ÷ 12 m/s
• Operates with liquids containing up to ~30% air bubbles or suspended solids (including black water)
• Display with oscilloscope function
• Digital Signal Processing (DSP) with Cross Correlation and FFT
• 4–20 mA analogue output (configurable for negative or positive ranges; 2 outputs on request)
• SPDT relays for flow totalization (2 relays on request)
• Analogue inputs for external sensors (pressure, level, etc.)
• Self-diagnostic functions
• Keypad for programming with keypad lock
• Large colour graphic LCD (320×240 pixels)
• Software for installation and data download
• Datalogger up to 1,000,000 records

Technical specifications

• Model: MTTMP (one- or two-channel ultrasonic transit-time flow meter)
• Transducer types: Clamp-On or insertion
• Signal processing: Advanced DSP with Cross Correlation and FFT
• Maximum independent measurements: 2 (total max 2 chord planes)
• Speed measuring range: 0.02 ÷ 12 m/s
• Operation in challenging fluids: supports liquids with up to ~30% air bubbles or suspended solids
• Outputs: analogue 4–20 mA (configurable for negative/positive ranges); option for two outputs on request
• Relays: SPDT relays for totalization (2 on request)
• Analogue inputs: for pressure, level, etc.
• Display: 320×240 px colour graphic LCD with oscilloscope function
• Interface: keypad for programming with lock function
• Diagnostics: self-diagnostic functions
• Data handling: datalogger capacity up to 1,000,000 records; software for configuration and data download
• Special features: Patented Anti-Round Technology; clamp-on installation avoids pressure drop
