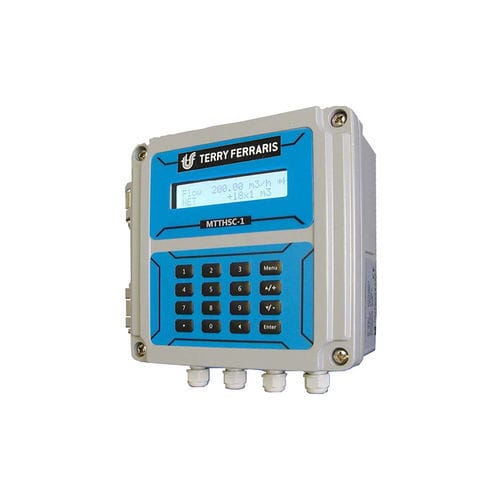

Ultrasonic transit-time flow meter MTTHSC-1

volumefor liquidsDN25 - 1"

Overview
MTTHSC-1 is an ultrasonic flow meter designed for accurate, repeatable flow measurement at low life-cycle cost. The unit features a robust metal enclosure and industrial-grade transducers available in insertion and clamp-on variants. Clamp-on sensors allow non-intrusive installation, reducing downtime and labour.

Installation and sensors
Suitable for pipe diameters from 25 mm to 1200 mm. Sensor options: insertion (in-line) and clamp-on (non-intrusive). Transducers rated IP68 for wet or submerged applications. Clamp-on sensors avoid pipe cutting and simplify retrofit installations.

Technology and operation
The MTTHSC-1 microprocessor uses transit-time correlation technology to deliver long-term, drift-free flow measurement. The instrument provides a user-friendly interface for configuration and diagnostics. No mechanical wear parts and minimal maintenance requirements reduce operating costs.

Measurement / Detection / Technology
Measurement: Flow / Flow rate
Detection: Flow/flow rate
Technology: Transit time correlation (transit times)

Compatible electronics

• LED96 — Digital measurement indicators

Datasheet
Datasheet available (PDF).

Characteristics / technical specifications

• Model: MTTHSC-1
• Measurement: Flow / Flow rate
• Detection: Flow/flow rate
• Technology: Transit time correlation (transit times)
• Pipe size range: 25 mm to 1200 mm diameter
• Sensor designs: insertion and clamp-on
• Sensor protection rating: IP68
• Enclosure: robust metal enclosure
• Transducers: industrial grade materials
• Electronics: microprocessor-based, user-friendly interface
• Maintenance: no mechanical wear, minimal maintenance
