Ultrasonic transit-time flow meter MTTMC

volumefor waterfor wastewater

Product overview

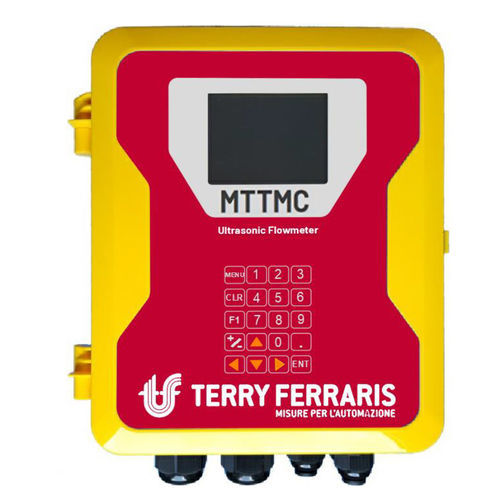

The MTTMC is a one- or two-channel ultrasonic transit-time flow meter for pipes and ducts. It combines a DSP-based processing unit with up to four speed transducers. The meter measures the difference in transit time between ultrasonic pulses sent upstream and downstream at an angle α to the flow direction. Clamp‑On transducers are mounted externally and do not introduce flow restriction or pressure drop. The DSP computer with Cross Correlation and FFT algorithms enables reliable operation in demanding media, including liquids with high suspended solids, entrained air or strong acoustic noise. The system supports two independent measurements up to a total of 2 chord planes.

Measurement / Detection / Technology
Measurement: Flow / Flow rate; Electronics
Detection: Flow / Flow rate
Technology: Transit-time ultrasonic method; DSP with Cross Correlation and FFT

Key features

• Clamp‑On or insertion transducers (up to 4)
• Patented Anti‑Round technology for improved accuracy
• Speed measuring range: 0.02 ÷ 12 m/s
• Capable on liquids with up to 30% air bubbles or heavily contaminated (black) water
• Large colour graphic LCD (320×240) with oscilloscope function
• Digital Signal Processing (DSP) for noisy or turbulent flows
• Two configurable 4–20 mA analogue outputs (negative/positive ranges possible)
• Two relays for flow totalization
• Two analogue inputs for external variables (pressure, level, etc.)
• Self‑diagnostic and keypad lock functions
• Built‑in datalogger: up to 1,000,000 records; internal 32 MB, external up to 8 GB
• PC software for configuration and data download

Compatible electronics
LED96 — digital measurement indicators

Technical specifications

• Model: MTTMC
• Type: 1- or 2-channel ultrasonic transit-time flow meter for pipes and ducts
• Transducers: Clamp‑On or insertion (up to 4 speed transducers)
• Measuring principle: Transit time difference of ultrasonic pulses
• Speed range: 0.02 ÷ 12 m/s
• Operation in challenging media: reliable with suspended solids and up to 30% air bubbles
• Electronics: DSP with Cross Correlation and FFT
• Independent measurements: up to 2 chord planes total
• Outputs: 2 × 4–20 mA (configurable negative/positive)
• Relays: 2 for totalization
• Analogue inputs: 2 for external signals (pressure, level, etc.)
• Display: Colour graphic LCD 320×240 px with oscilloscope function
• Diagnostics: Self‑diagnostic function
• Datalogger: up to 1,000,000 records; internal 32 MB; external up to 8 GB
• Software: PC tool for installation and data download
• Advantages: no pipe restriction with Clamp‑On sensors — no induced pressure drop

Applications

• Monitoring flow in water distribution and wastewater networks
• Process flow measurement in industrial plants
• Pumping stations, sewage systems, and treatment plants
• HVAC and large‑diameter piping where non‑intrusive measurement is required

Installation & software
Clamp‑On mounting avoids pipe cutting and process interruption; insertion probes available where required. The supplied PC software facilitates sensor configuration, calibration checks and data download. Built‑in diagnostics and keypad lock simplify commissioning and secure local settings.
