Thread rolling machine 645E

Overview

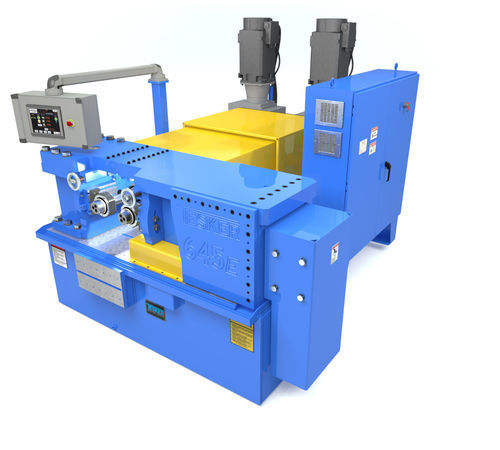

The Tesker Model 645E 2-Die is a high-strength thread rolling machine for infeed and thrufeed applications, suitable for heat-treated parts. It delivers up to 235,000 lb of adjustable rolling pressure and a rigid construction for consistent thread forming.

Specifications
Tesker Model 645E 2-Die Machine Specifications:
Type: Infeed & Thrufeed
Capacity: 6 in
Rolling Pressure: Adjustable to 235,000 lb

Motors
Spindle Drive: 75 HP (variable) / 50 HP (4-speed)
Hydraulic: 10 HP, Capacity 80 Gal
Coolant: 1/2 HP, Capacity 120 Gal

Dies
Maximum Diameter: 10 in
Maximum Face Width: 7-1/2 in
Spindle Size: 3-1/4 in (other sizes available)
Spindle Speeds: Variable or 4-Speed Manual
Spindle RPM: 10 - 125 (other speeds available)

Floor Dimensions
Width: 87 in
Length: 113 in
Height: 52 in
Weight: 21,000 lb

Compliance
All models are wired to NFPA 79 standards for operation on 480 V, 3 phase, 60 Hz. Other voltages are available at additional cost. Specifications are subject to change without notice. Fixturing and additional guards may be required depending on the application; Tesker Manufacturing Corporation is not liable for fixtures or guards designed or installed by third parties.

Standard Equipment

• Servo Drive — Independent high-accuracy control of spindle axis; reduced components and maintenance; radial die line-up via motor control from the HMI.
• Front L Support with Front Bar Feed Fixture — Adjustable work-holding fixture attached to the machine front.
• Spring Loaded Rear Stop Assembly with Base — Positions parts for infeed rolling; spring loaded to allow slight part movement.
• Versa III Auto Oil Lubrication System — Automatic feed slide oiling system.
• Hydraulic Slow Release Valve — Releases rolling force gradually to prevent thread form deformation during heavy rolling.
• Spindle RPM Tachometer — Displays spindle RPM.

Available Options

• Thread Length Control Limit Switch — Allows positioning of thread length when rolling part of a rod.
• Radial Die Line-Up Coupling — Permits separate rotational adjustment between spindles for infeed or helical dies.
• Part Hold Down with Spring Loaded Stop — Hand-operated holder to keep parts on support blade and maintain operator safety.
• Tie Arm Hydraulic Stop Block Assembly — Adjustable mechanical stop to prevent over-rolling tail-ends of thrufeed bars.
• Enclosed Toe-in Indicator — Reference for adjusting main head die for part taper.
• Outboard Roller Supports (1 set/2 pcs) — Provide additional part clearance behind spindle supports.
• Center Stands (1 set/2 pcs) — Support the center tube.
• Center Support Tube (one required per size) — Guides parts exiting the back of the machine; one per size.
• Upper Support Holder — Captures material between dies and support blades for high-speed studs and threaded rod.
• Feeding and Receiving Fixtures — Custom feeding and receiving fixtures available.

Technical specifications

• Type: Infeed & Thrufeed
• Capacity: 6 in
• Rolling Pressure: Adjustable to 235,000 lb
• Spindle Drive: 75 HP (variable) / 50 HP (4-speed)
• Hydraulic: 10 HP, Capacity 80 Gal
• Coolant: 1/2 HP, Capacity 120 Gal
• Maximum Die Diameter: 10 in
• Maximum Face Width: 7-1/2 in
• Spindle Size: 3-1/4 in (other sizes available)
• Spindle Speeds: Variable or 4-Speed Manual
• Spindle RPM: 10 - 125 (other speeds available)
• Floor Dimensions (W x L x H): 87 in x 113 in x 52 in
• Weight: 21,000 lb
• Wiring: NFPA 79 standards for 480 V, 3 phase, 60 Hz (other voltages available)
