Thread rolling machine 200E

Overview

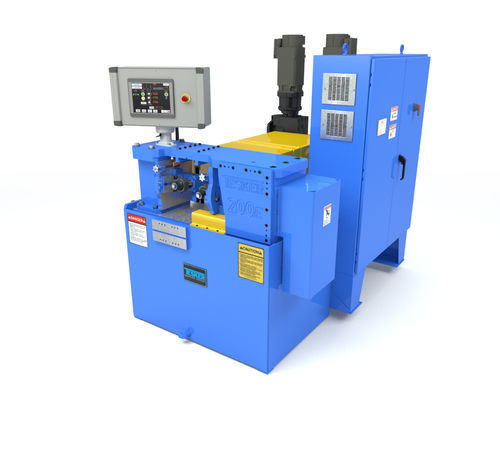

The Tesker Model 200E is a 2-die thread rolling machine designed for infeed and thrufeed rolling of studs and threaded rod. It features heavy-duty, high-torque rollers and adjustable rolling pressure for repeatable production in industrial environments.

Machine Specifications (from product table)

• Type: Infeed & Thrufeed
• Capacity: 2 inches
• Rolling Pressure: Adjustable to 24,000 lbs.

Motors

• Spindle Drive: 15 HP
• Coolant: 1/4 HP, Capacity 50 Gal

Dies

• Maximum Diameter: 6 inches
• Maximum Face Width: 3-1/2 inches
• Spindle Size: 1-1/2 inches (other sizes available)
• Spindle Speeds: Variable
• Spindle RPM: 45 - 200 (other speeds available)

Floor Dimensions

• Width: 56 inches
• Length: 66 inches
• Height: 62 inches
• Weight: 3,000 lbs.

Tesker Model 200E 2-Die Standard Equipment

• Tie Arm Hydraulic Stop Block Assembly — adjustable mechanical stop to prevent over-rolling of thrufeed bars.

Tesker Model 200E 2-Die Available Options

• Servo Drive — independent spindle drive control with HMI radial die line-up
• Thread Length Control Limit Switch — positions thread length when rolling part of a rod
• Radial Die Line-Up Coupling — separate rotational adjustment for close-shoulder rolling
• Front 'L' Support with Front Bar Feed Fixture — adjustable work-holding at machine front
• Spring Loaded Rear Stop Assembly with Base — spring-loaded part stop for infeed rolling
• Part Hold Down with Spring Loaded Stop — manual hold-down for operator safety
• Versa III Auto Oil Lubrication System — automatic feed slide oiling
• Oil 1 Shot Manual Lubrication Unit — hand pump oiler for feed slide
• Enclosed Toe-in Indicator — reference for left main head die taper adjustment
• Outboard Roller Supports (set of 2) — increases part clearance behind spindle supports
• Center Stands (set of 2) — supports center tube
• Center Support Tube — required per size for parts exiting rear of machine
• Upper Support Holder — secures material between dies for high-speed studs and rod
• Feeding and Receiving Fixtures — custom fixtures for specific applications

Technical specifications

• Type: Infeed & Thrufeed
• Capacity: 2 inches
• Maximum Die Diameter: 6 inches
• Maximum Die Face Width: 3-1/2 inches
• Spindle Size: 1-1/2 inches (other sizes available)
• Spindle Drive: 15 HP
• Spindle RPM: 45 - 200 (variable; other speeds available)
• Rolling Pressure: Adjustable to 24,000 lbs.
• Coolant: 1/4 HP; capacity 50 gallons
• Floor Footprint: 56" W x 66" L x 62" H
• Weight: 3,000 lbs.
• Electrical: Wired to NFPA 79 for 480 volt, 3 phase, 60 Hz (other voltages available)

All models wired to NFPA 79 standards for operation on 480 volt, 3 phase, 60 Hz. Other voltages available at additional cost. Specifications subject to change without notice. Please note that fixturing and additional guards may be required depending on the job. Tesker Manufacturing Corporation assumes no liability for fixturing or guards designed, manufactured or installed by parties other than Tesker Manufacturing Corporation.
