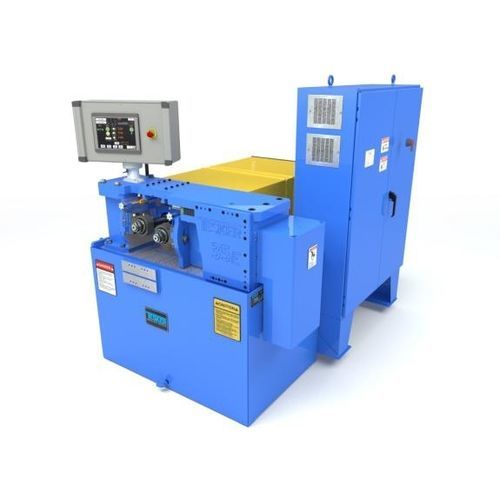

Thread rolling machine 35E

All models wired to NFPA 79 standards for operation on 480 volt, 3 phase, 60 hz. Other voltages available at additional cost. Specifications subject to change without notice. Please be advised that fixturing and additional guards may be needed, depending on job being rolled. Tesker Manufacturing Corporation assumes no liability for fixturing or guards designed, manufactured or installed by anyone other than Tesker Manufacturing Corporation. -Servo Drive High accuracy independent control of spindle drive axis. Reduced components and maintenance. Radial die line-up via motor control from the HMI interface. -Thread Length Control Limit Switch Used when rolling threads on part of a rod. The rod is thrufed until it bumps the limit switch and the head opens up. The limit switch can be positioned from behind the dies to the gear boxes at rear of machine allowing a thread length anywhere in this range. -Radial Die Line-Up Coupling Permits separate rotational adjustment of one spindle to the other for matching of infeed or helical slow feed dies, keeping die faces even when desired. Dies can be matched laterally, but when infeed rolling close to a shoulder, rotational line-up is desirable. Helical slow feed should only be radially lined up. Coupling is not needed for the normal infeed or thrufeed rolling. -Front "L" Support including Front Bar Feed Fixture Adjustable work holding fixture that attaches to front of machine
