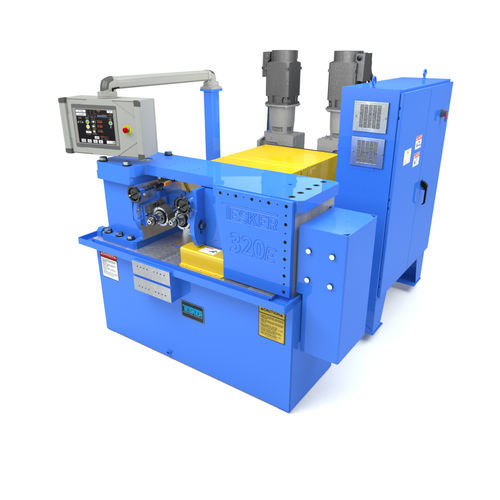

Thread rolling machine 320E

Product Overview
A Popular System for Medium-Sized Rolling
With spindles that tilt either direction, as well as a space-saving footprint, it's easy to see why so many manufacturers love the Tesker Model 320 2-Die Thread Rolling Machine.

Specifications (from machine table)
Tesker Model 320E 2-Die Machine Specifications:
Type: Infeed & Thrufeed
Capacity: 3"
Rolling Pressure: Adjustable to 80,000 lbs.
Motors - Spindle Drive: 40 HP on variable speed models, 30 HP on 4-speed models
Motors - Hydraulic: 5 HP, Capacity 50 Gal
Motors - Coolant: 1/4 HP, Capacity 80 Gal
Dies - Maximum Diameter: 8"
Dies - Maximum Face Width: 5-1/2"
Dies - Spindle Size: 2-1/2" (other sizes available)
Dies - Spindle Speeds: Variable or 4-Speed manual
Dies - Spindle RPM: 20 - 120 (other speeds available)
Floor Dimensions - Width: 76"
Floor Dimensions - Length: 96"
Floor Dimensions - Height: 52"
Weight: 10,000 lbs.
All models wired to NFPA 79 standards for operation on 480 volt, 3 phase, 60 hz. Other voltages available at additional cost.
Specifications subject to change without notice.

Standard Equipment

• Servo Drive: High accuracy independent control of spindle drive axis. Reduced components and maintenance. Radial die line-up via motor control from the HMI interface.
• Versa III Auto Oil Lubrication System: Automatic feed slide oil system.
• Hydraulic Slow Release Valve: Used in heavy rolling, function releases rolling force slowly to prevent deformation of thread form.
• Spindle RPM Tachometer: Reads the RPM of the spindle.

Available Options

• Thread Length Control Limit Switch: Used when rolling threads on part of a rod; allows positioning of thread length by limit switch placement.
• Radial Die Line-Up Coupling: Permits separate rotational adjustment of one spindle to the other for matching infeed or helical slow feed dies; keeps die faces even when desired.
• Front "L" Support including Front Bar Feed Fixture: Adjustable work holding fixture that attaches to front of machine.
• Spring Loaded Rear Stop Assembly with Base: Spring loaded part stop positions part to the desired location for infeed rolling and allows slight part movement.
• Part Hold Down with Spring Loaded Stop: Hand operated; holds part on support blade so fingers are at a safe distance during rolling.
• Tie Arm Hydraulic Stop Block Assembly: Adjustable mechanical stop that prevents over-rolling the tail-end of thrufeed bars.
• Enclosed Toe-in Indicator: Gives a reference for adjusting the left main head die for part taper.
• Hydraulic Slow Release Valve (option): Used in heavy rolling to release rolling force slowly to prevent deformation of thread form.
• Outboard Roller Supports (1 set/2 pcs): Behind the spindle support blocks; gives more part clearance for large head bolts, etc.
• Center Stands (1 set/2 pcs): Supports the center tube.
• Center Support Tube (1 needed for each size): Contains parts out the back of machine; one needed for each size.
• Upper Support Holder: Captures material between dies and work support blades for running high-speed studs and threaded rod.
• Feeding and Receiving Fixtures: Custom designed feeding and receiving fixtures for specific needs.

Caractéristiques / Spécifications techniques

• Type: Infeed & Thrufeed
• Capacity (max part diameter): 3"
• Rolling Pressure: up to 80,000 lbs (adjustable)
• Spindle Drive Power: 40 HP (variable speed) or 30 HP (4-speed)
• Hydraulic Power: 5 HP, 50 gal capacity
• Coolant Pump: 1/4 HP, 80 gal capacity
• Dies - Max Diameter: 8"
• Dies - Max Face Width: 5-1/2"
• Spindle Size: 2-1/2" (other sizes available)
• Spindle Speeds/RPM: Variable or 4-speed manual; 20 - 120 RPM (other speeds available)
• Floor Footprint (W x L x H): 76" x 96" x 52"
• Weight: 10,000 lbs
• Electrical: Wired to NFPA 79 for 480V, 3-phase, 60Hz (other voltages available)
