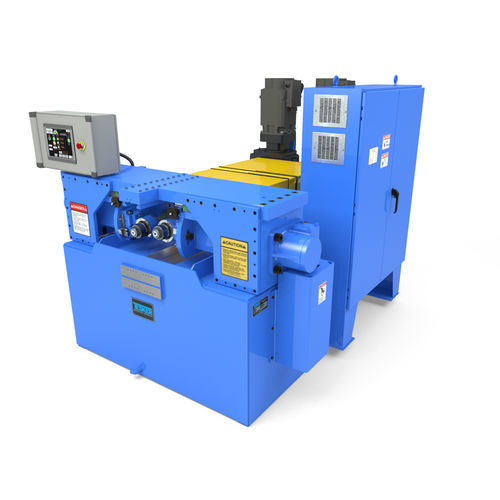

Thread rolling machine 380E

Product Overview
Tesker Model 380E 2-Die

Tagline
Low-maintenance two-die thread rolling machine for infeed and thrufeed operations

Summary
Features direct-drive bevel gearboxes, linear guideways and a screw drive delivering efficient rolling force. Designed for high-capacity industrial thread rolling with variable spindle speeds.

Specifications

• Type: Infeed & Thrufeed
• Capacity: 4"
• Rolling Pressure: 100,000 lbs

Motors

• Spindle Drive: 40 HP
• Coolant: 1/4 HP, Capacity 75 Gal

Dies

• Maximum Diameter: 8"
• Maximum Face Width: 5.5"
• Spindle Size: other sizes available
• Spindle Speeds: Variable (RPM 1 - 130; other speeds available)

Floor Dimensions

• Width: 94"
• Length: 92"
• Height: 77"
• Weight: 12,500 lbs

Electrical
All models wired to NFPA 79 standards for operation on 240 or 480 volt, 3 phase, 60hz. Other voltages available at additional cost.

Standard Equipment

• Servo Drive: Independent high-accuracy control of spindle drive axis; reduced components and maintenance. Radial die line-up via motor control from the HMI.
• Spindle RPM Tachometer: Displays spindle RPM.

Available Options

• Feeding and Receiving Fixtures: Custom-designed fixtures to match specific production requirements.

Notes
Specifications subject to change without notice. Fixturing and additional guards may be required depending on the job. Tesker Manufacturing Corporation assumes no liability for fixtures or guards designed, manufactured or installed by parties other than Tesker Manufacturing Corporation.
