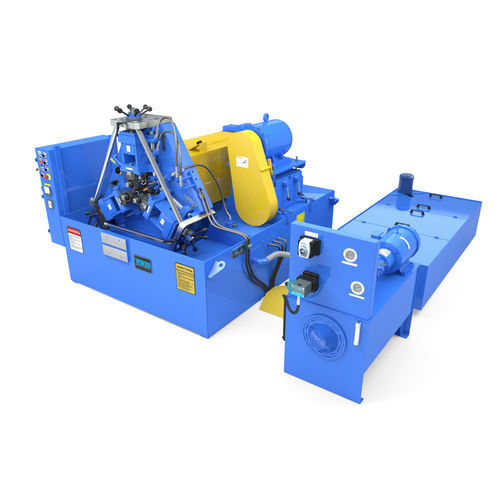

Thread rolling machine 1015E

CNC

Product Overview
Ideal for smaller threads, the Tesker Model 1015E 3-Die Thread Rolling Machine offers compact dimensions, rigid construction and higher production speeds.

Specifications
Tesker Model 1015E 3-Die Machine Specifications:
Type: Infeed & Thrufeed
Capacity: 1-1/8" Max / 5/8" Min
Rolling Pressure: Adjustable to 25,000 lbs.
Motors:
Spindle Drive: 15 HP
Hydraulic: 3 HP, Capacity 50 Gal
Coolant: 1/4 HP, Capacity 120 Gal
Dies:
Maximum Diameter: 4-1/2"
Maximum Face Width: 2-3/8"
Spindle Size: 1-1/2" (other sizes available)
Spindle Speeds: 6-Speed Manual
Spindle RPM: 150-490 (other speeds available)
Floor Dimensions:
Width: 78"
Length: 88"
Height: 66"
Weight: 9,500 lbs.
All models wired to NFPA 79 standards for operation on 240 or 480 volt, 3 phase, 60hz. Other voltages available at additional cost.
Specifications subject to change without notice.

Available Options

• Center Stands (1 set/2 pcs): Supports the center tube.
• Center Support Tube (1 needed for each size): Contains parts out the back of machine. One needed for each size.
• Feeding and Receiving Fixtures: Custom designed feeding and receiving fixtures for your specific needs.

Technical Specifications

• Type: Infeed & Thrufeed
• Capacity: 1-1/8" Max / 5/8" Min
• Rolling Pressure: Adjustable to 25,000 lbs.
• Spindle Drive: 15 HP
• Hydraulic: 3 HP, Capacity 50 Gal
• Coolant: 1/4 HP, Capacity 120 Gal
• Dies - Maximum Diameter: 4-1/2"
• Dies - Maximum Face Width: 2-3/8"
• Spindle Size: 1-1/2" (other sizes available)
• Spindle Speeds: 6-Speed Manual
• Spindle RPM: 150-490 (other speeds available)
• Floor Width: 78"
• Floor Length: 88"
• Floor Height: 66"
• Weight: 9,500 lbs.
• Wiring: NFPA 79 standard for 240 or 480 volt, 3 phase, 60hz (other voltages available at additional cost)
