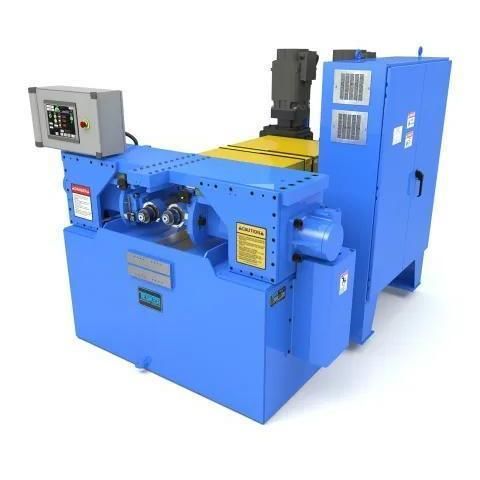

Thread rolling machine 280E

high-precision

Overview
The Tesker Model 280E 2-Die is a heavy-duty thread rolling machine designed for both infeed and thrufeed applications. Critical components are positioned to remain clear of coolant and swarf for improved uptime and ease of maintenance.

Specifications

• Type: Infeed & Thrufeed
• Capacity: 2-1/2"
• Rolling Pressure: Adjustable to 60,000 lbs.

Motors

• Spindle Drive: 40 HP
• Coolant Pump: 1/4 HP — Capacity 50 Gal

Dies

• Maximum Die Diameter: 8"
• Maximum Face Width: 5-1/2"
• Spindle Size: 2-1/2" (other sizes available)
• Spindle Speeds: 1-130 rpm (other speeds available)

Floor Dimensions

• Width: 84"
• Length: 88"
• Height: 77"
• Weight: 10,500 lbs.

Electrical & Notes
All models are wired to NFPA 79 standards for operation on 240 or 480 V, 3 phase, 60 Hz. Other voltages are available at additional cost. Specifications subject to change without notice.

Standard Equipment

• Servo Drive — High-accuracy independent control of the spindle drive axis; reduces components and maintenance. Radial die line-up via motor control from the HMI.
• Spindle RPM Tachometer — Provides real-time spindle RPM readout.

Available Options

• Feeding and Receiving Fixtures — Custom-designed fixtures to match your part handling requirements.

Technical Specifications

• Type: Infeed & Thrufeed
• Capacity: 2-1/2"
• Rolling Pressure: Adjustable to 60,000 lbs.
• Spindle Drive: 40 HP
• Coolant: 1/4 HP, Capacity 50 Gal
• Maximum Die Diameter: 8"
• Maximum Face Width: 5-1/2"
• Spindle Size: 2-1/2" (other sizes available)
• Spindle Speeds: 1-130 rpm (other speeds available)
• Floor Width: 84"
• Floor Length: 88"
• Height: 77"
• Weight: 10,500 lbs.
• Electrical: Wired to NFPA 79 for 240 or 480 V, 3 phase, 60 Hz (other voltages available)
