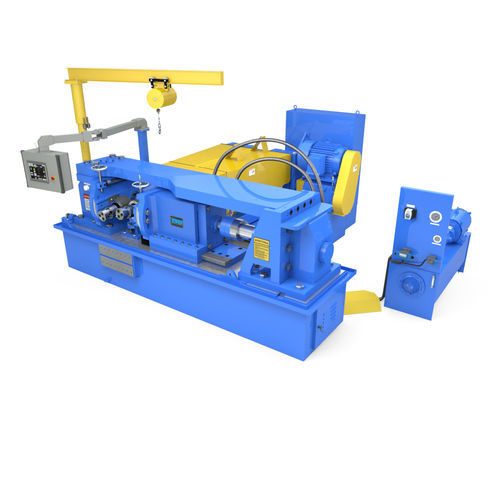

Thread rolling machine 840E

hydraulichigh-precision

Overview
The Tesker Model 840E 2-Die thread rolling machine is an infeed & thrufeed industrial unit designed for large-diameter and heavy-duty rolling applications. It accepts up to a 24" capacity and delivers adjustable rolling pressure up to 650,000 lb.

Key specifications

• Type: Infeed & Thrufeed
• Capacity: 24"
• Rolling Pressure: Adjustable to 650,000 lb
• Spindle Drive: 100 HP
• Hydraulic: 30 HP (100 Gal capacity)
• Coolant: 3/4 HP (200 Gal capacity)
• Dies maximum diameter: 16"
• Dies maximum face width: 15"
• Spindle size: 5-1/2" (other sizes available)
• Spindle speeds: Variable (RPM 2 - 50; other speeds available)
• Floor dimensions (W x L x H): 216" x 255" x 106" (with crane)
• Weight: 96,000 lb
• Electrical: Wired to NFPA 79 for 240 or 480 V, 3-phase, 60 Hz (other voltages available)

Motors & utilities
The machine is equipped with a 100 HP spindle drive, 30 HP hydraulic motor with 100 Gal reservoir, and a 3/4 HP coolant pump with 200 Gal tank. Units are wired to NFPA 79 standards; alternate voltages and frequencies can be provided.

Dies & tooling
Supports dies up to 16" diameter and 15" face width. Standard spindle size is 5-1/2" with variable spindle speeds. Center supports and center support tubes are available for through-feed operations; other spindle and die sizes can be supplied to match specific parts.

Standard equipment

• Servo Drive — high-accuracy independent control of spindle drive axis; reduced components and maintenance; radial die line-up via motor control from the HMI.

Available options

• Front "L" Support including front bar feed fixture
• Spring loaded rear stop assembly with base
• Versa III automatic oil lubrication system
• Hydraulic slow release valve for controlled force release in heavy rolling
• Spindle RPM tachometer
• Radial die line-up coupling for spindle-to-spindle alignment
• Enclosed toe-in indicator for part taper adjustment
• Center stands (set of 2 pcs)
• Center support tube (one required per size)
• Air balancer jib crane for die changes
• Custom feeding and receiving fixtures

Installation & safety notes
Specifications subject to change without notice. Fixturing and additional guards may be required depending on the part and process; Tesker Manufacturing Corporation is not liable for fixturing or guards designed, manufactured or installed by third parties.
