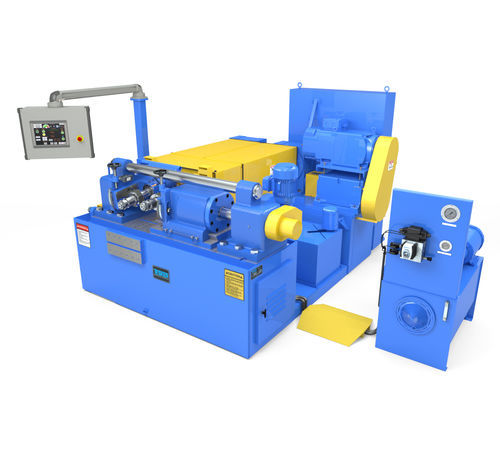

Thread rolling machine 440E

high-precision

Model tagline
More Muscle for Tougher Alloys

Overview
Designed for greater strength and rigidity, the Tesker Model 440E 2-Die Thread Rolling Machine provides cost-effective dependability in challenging applications. The machine is suitable for both infeed and thrufeed rolling operations and is configurable for a range of spindle sizes and speeds.

Tesker Model 440E 2-Die Machine Specifications:
Type: Infeed & Thrufeed
Capacity: 4-1/2"
Rolling Pressure: Adjustable to 125,000 lbs.

Motors
Spindle Drive: 60 HP (variable)/40 HP (4-speed)
Hydraulic: 5 HP, Capacity 50 Gal
Coolant: 1/2 HP, Capacity 120 Gal

Dies
Maximum Diameter: 9"
Maximum Face Width: 8"
Spindle Size: 3" (other sizes available)
Spindle Speeds: Variable or 4-speed Manual
Spindle RPM: 10 - 170 (other speeds available)

Floor Dimensions
Width: 92"
Length: 102"
Height: 68"
Weight: 16,000 lbs.

All models wired to NFPA 79 standards for operation on 240 or 480 volt, 3 phase, 60hz. Other voltages available at additional cost. Specifications subject to change without notice. Please be advised that fixturing and additional guards may be needed, depending on job being rolled. Tesker Manufacturing Corporation assumes no liability for fixturing or guards designed, manufactured or installed by anyone other than Tesker Manufacturing Corporation.

Standard Equipment

• Servo Drive - High accuracy independent control of spindle drive axis. Reduced components and maintenance. Radial die line-up via motor control from the HMI interface.

Available Options

• Versa III Auto Oil Lubrication System - Automatic feed slide oil system.
• Hydraulic Slow Release Valve - Used in heavy rolling; function releases rolling force slowly to prevent deformation of thread form.
• Spindle RPM Tachometer - Reads the RPM of the spindle.
• Thread Length Control Limit Switch - Used when rolling threads on part of a rod; allows positioning to obtain desired thread length.
• Radial Die Line-Up Coupling - Permits separate rotational adjustment of one spindle to the other for matching of infeed or helical slow feed dies.
• Front "L" Support including Front Bar Feed Fixture - Adjustable work holding fixture that attaches to front of machine.
• Spring Loaded Rear Stop Assembly with Base - Positions part for infeed rolling and is spring loaded for slight part movement.
• Part Hold Down with Spring Loaded Stop - Hand operated; holds part on support blade so fingers are at a safe distance during rolling.
• Tie Arm Hydraulic Stop Block Assembly - Adjustable mechanical stop that prevents over-rolling the tail-end of thrufeed bars.
• Enclosed Toe-in Indicator - Gives a reference for adjusting the left main head die for part taper.
• Outboard Roller Supports (1 set/2 pcs) - Behind the spindle support blocks; gives more part clearance.
• Center Stands (1 set/2 pcs) - Supports the center tube.
• Center Support Tube (1 needed for each size) - Contains parts out the back of machine; one needed for each size.
• Upper Support Holder - Captures material between dies and work support blades for running high-speed studs and threaded rod.
• Feeding and Receiving Fixtures - Custom designed feeding and receiving fixtures for specific needs.

Technical Specifications

• Type: Infeed & Thrufeed
• Capacity: 4-1/2"
• Rolling Pressure: Adjustable to 125,000 lbs.
• Spindle Drive: 60 HP (variable) / 40 HP (4-speed)
• Hydraulic: 5 HP, 50 Gal capacity
• Coolant: 1/2 HP, 120 Gal capacity
• Maximum Die Diameter: 9"
• Maximum Face Width: 8"
• Spindle Size: 3" (other sizes available)
• Spindle Speeds: Variable or 4-speed Manual
• Spindle RPM: 10 - 170 (other speeds available)
• Floor Width: 92"
• Floor Length: 102"
• Height: 68"
• Weight: 16,000 lbs.
• Electrical: Wired to NFPA 79 for 240 or 480V, 3 phase, 60Hz (other voltages available)
