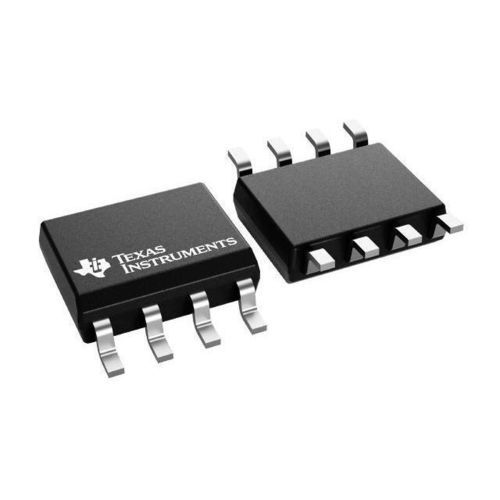

Operational amplifier TLV9062

analogminiaturewith filtering

Overview
The TLV9062 is a dual low-voltage operational amplifier offering rail-to-rail input and output swing for systems operating from 1.8 V to 5.5 V. It is suitable for compact, cost-sensitive applications that require capacitive-load drive and low standby current variants.

Key points

• Dual-channel op amp (TLV9062) with rail-to-rail input and output
• Supply range: 1.8 V to 5.5 V
• Targeted for compact, cost-sensitive low-voltage applications
• Shutdown versions available (TLV906xS) with typical standby <1 µA

Features

• Rail-to-rail input and output
• Low input offset voltage: ±0.3 mV (typical)
• Unity-gain bandwidth: 10 MHz
• Low broadband noise: ~10 nV/√Hz
• Very low input bias current: 0.5 pA (typical)
• Low quiescent current: 538 µA per channel (typical)
• Unity-gain stable; no phase reversal under overdrive
• Internal RFI/EMI rejection filter
• Resistive open-loop output impedance improves stability with capacitive loads
• Extended operating temperature: –40 °C to 125 °C

Parameters (select, typical / max / min)
Number of channels: 2
Total supply voltage (max): 5.5 V
Total supply voltage (min): 1.8 V
Rail-to-rail: Input and Output
GBW (typ): 10 MHz
Slew rate (typ): 6.5 V/µs
Vos at 25 °C (max): 1.6 mV
Iq per channel (typ): 0.538 mA (538 µA)
Vn at 1 kHz (typ): 16 nV/√Hz
Operating temperature range: -40 °C to 125 °C
Offset drift (typ): 0.53 µV/°C
CMRR (typ): 103 dB
Iout (typ): 0.05 A
Architecture: CMOS
Typical capacitive load: 100 pF (design target)

Description
The TLV906x family (TLV9061 single, TLV9062 dual, TLV9064 quad) is optimized for low-voltage operation while delivering amplifier performance comparable to similar TI devices. The family supports capacitive load drive (100 pF typical) and is easier to stabilize with larger capacitive loads due to a resistive open-loop output impedance. TLV906xS variants add a shutdown function for ultra-low standby current. Multiple package options are available including micro-size (X2SON, X2QFN) and industry-standard packages (SOIC, MSOP, SOT-23, TSSOP, VSSOP, WSON, DSBGA).

Technical specifications

• Model: TLV9062 (dual channel)
• Supply voltage range: 1.8 V to 5.5 V
• Unity-gain bandwidth: 10 MHz (typical)
• Slew rate: 6.5 V/µs (typical)
• Input offset voltage (typ): ±0.3 mV; max listed 1.6 mV
• Quiescent current: ~538 µA per channel (typical)
• Input noise (1 kHz): ~16 nV/√Hz (typical)
• Operating temperature: -40 °C to +125 °C
• Rail-to-rail input and output
• Integrated RFI/EMI filter; shutdown option with <1 µA standby (TLV906xS)
• Architecture: CMOS; CMRR (typ) 103 dB
• Typical output current: 0.05 A
