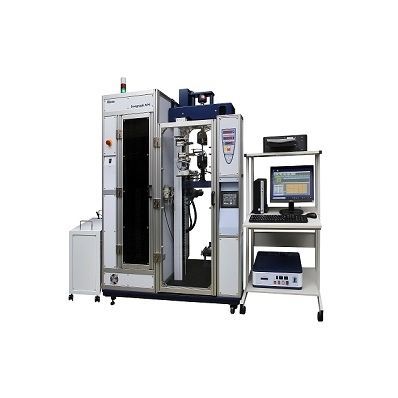

Tensile testing machine Strograph™-AP

fully-automaticfor plastics

The Strograph AP is designed exclusively for the fully-automated tensile testing of plastics according to ISO 527-2 and ASTM D638. Once specimens are loaded into specimen magazine, this advanced system conducts continuous tensile testing of 200 specimens without human intervention. The sequence from specimen dimensional measurement, specimen mounting on grips, tensile testing, specimen disposal and data collection is performed in fully automatic mode. ISO 527-2 - Plastics — Determination of tensile properties Part 2: Test conditions for moulding and extrusion plastics JIS K 7161-2 ASTM D 638 - Standard Test Method for Tensile Properties of Plastics Features & Benefits • Continuous fully-automatic testing of 200 plastic specimens according to ISO 527-2 and ASTM D638 • Specimen measurement is included in the sequence • High-precision extensometer: accurate measurement of elastic modulus and elongation at break • Fully-automated system improves repeatability and safety • Large size status indicator light: easy to recognize from a distance • Windows based software for data acquisition and analysis • Space-saving design: W1440 × D870 × H1910mm Specifications Load capacity - Max. 20kN Test speed range - 0.5 to 500mm/min. Effective crosshead travel - Approx. 700mm Thickness gauge - Measurement points: 3 points Anvils: R1.5mm (spherical), fix side ∅2mm (flat) Extensometer - Contact type, gauge length 20mm Specimen magazine - Max. 200 specimens Power supply - Single-phase, AC100V, 50/60Hz, 1.3kVA (or specify) Compressed air - 0.5MPa Dimensions - W1440 × D870 × H1910mm Weight - Approx. 620kg
