Compression testing machine 107electrical and mechanicalautomaticmaterial
Add to favorites
Compare this product
Characteristics
- Test type
- compression, electrical and mechanical
- Operating mode
- automatic
- Test material
- material
- Other characteristics
- three-phase
Description

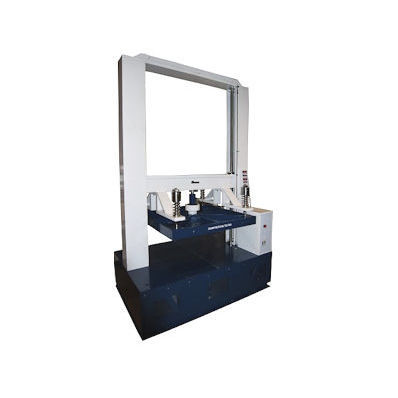

The (Box) Compression Tester evaluates the compression strength of packing boxes etc.
JIS Z 0212 - Packaged freights and containers−Method of compression test
Features & Benefits
• Large compression space
• Excellent platen parallelism
• Electrical and mechanical safeguards
• AC servo motor drive ensures accurate compression speed
• Emergency stop button
• Windows based testing software (option)
Load capacity - 50kN max.
Platen size - 1200 × 1200mm
Stroke - 1500mm
Test speed - 0.5 to 200mm/min.
Dimensions - W2080 × D1200 × H2840mm
Weight (approx.) - 2450kg
VIDEO
Catalogs
107 | Compression Tester
2 Pages
