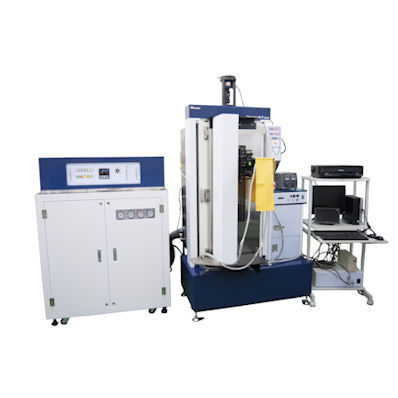

Compression testing machine Strograph™-T

tensileuniversalautomatic

The Strograph-T line is a universal Testing Machine (UTM/Tensile Tester) designed exclusively for environmental testing (-50 to +200°C) , capacity up to 10kN. This UTM is suitable for tensile, compression and flexural testing of plastics, rubber materials etc under high and low temperature circumstances. Specially designed test frame with environmental chamber provides large vertical test space. Features & Benefits • Vertical test space can be 900mm in the chamber. • The two-stage door* minimizes temperature fluctuations during loading and unloading of specimens. (*Only one-stage door is available when an extensometer is attached.) • Excellent temperature distribution even with a large vertical test space. • 4 test stations option is also available. Specifications Temperature range - -50°C to +200°C Load capacity - Max. 10kN Crosshead travel - 900mm Test speed range - 0.0005 to 500mm/min. Power supply - • Three-phase, AC200V, 50/60Hz, 3.5kVA (Main unit) • Three-phase, AC200V, 50/60Hz, 10.4kVA (Thermostatic chamber) (or specify) Dimensions - W1270 × D1000 × H2200mm Weight - Approx. 720kg
