Tensile testing machine Strograph™ AR-T

fully-automaticfor rubberdigital

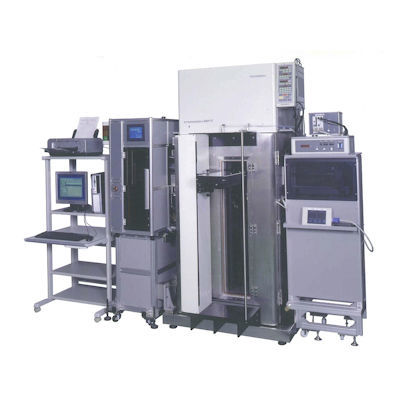

The Strograph AR-T is a testing machine for fully automatic tensile testing of rubber specimens under temperatures ranging from -40℃ to 150℃. It consists of a specimen magazine (ISO 37 Dumb-bell test piece Type 1A), specimen dimension measuring unit, specimen feeding mechanism, pneumatic grips, measuring unit, extensometer, broken specimen removal unit, constant temperature chamber, refrigerator, and PC. Once the specimens are set on the tray, all processes are performed automatically: specimen measurement ⇒ transfer to the thermostatic chamber (left at the set temperature for a certain time) ⇒ specimen clamping ⇒ measurement of elongation ⇒ specimen removal ⇒ data processing. ISO 37 - Rubber, vulcanized or thermoplastic- Determination of tensile stress-strain properties Load capacity - Max. 1kN Test speed range - 0.5 to 500mm/min. Effective crosshead travel - Approx. 700mm Thickness gauge - Measurement point: 3 points Anvil: ∅5mm Extensometer - Non-contact type Gauge length: 20mm Specimen feeder - Max. 120 specimens (n=6 specimens × 20 trays) Temperature range - -40°C to 150°C Safeguards - • Rod type limitter • Emergency stop swtich Power supply - • Main unit: Three-phase, AC200V, 50/60Hz, 6.9kVA (or specify) • PC: Single-phase, AC100V, 50/60Hz, 0.5kVA • Specimen feeder: Single-phase, AC100V, 50/60Hz, 1.0kVA • Chamber: Three-phase, AC200V, 50/60Hz, 13.8kVA (or specify) • Extensometer: Single-phase, AC100V, 50/60Hz, 0.5kVA Compressed air - • 0.5MPa, 40L/min. (For specimen feeder) • 0.5MPa, 150L/min. (For chamber) Cooling water - 0.2MPa to 0.8MPa, 30L/mmin. to 40L/min., 30°C or less Dimensions - • Main unit: W2200 × D1560 × H2030mm
