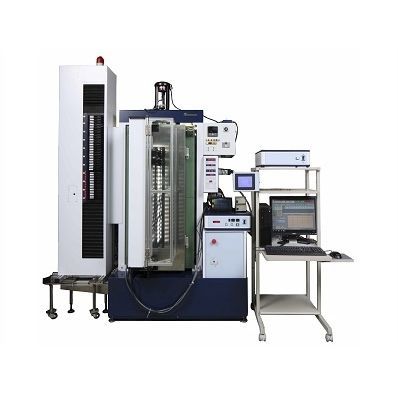

Tensile testing machine Strograph™ HT fully-automaticfor rubberthree-phase
Add to favorites
Compare this product
Characteristics
- Test type
- tensile
- Operating mode
- fully-automatic
- Test material
- for rubber
- Other characteristics
- three-phase
Description
The Strograph HT is the fully automated tensile testing machine for rubber with the thermostatic chamber.
ISO 37 - Rubber, vulcanized or thermoplastic- Determination of tensile stress-strain properties
Load capacity - Max. 1kN
Test speed range - 0.5 to 500mm/min.
Effective crosshead travel - Approx. 700mm
Thickness gauge - Measurement point: 3 points
Anvil: ∅5mm
Extensometer - Non-contact type (CCD camera system)
Gauge length: 20mm
Specimen feeder - Max. 300 specimens (n=6 specimens × 50 trays)
Temperature range - RT+20°C to 100°C
Power supply - • Main unit: Three-phase, AC200V, 50/60Hz, 3.5kVA (or specify)
• Chamber: Three-phase, AC200V, 50/60Hz, 10.4kVA (or specify)
Dimensions - • Main unit: W1780 × D920 × H2230mm
• Chamber: W630 × D1070 × H1300mm
Weight - Approx. 650kg
