Tensile testing machine Strograph™ AE Filmfully-automaticfor plastics
Add to favorites
Compare this product
Characteristics
- Test type
- tensile
- Operating mode
- fully-automatic
- Test material
- for plastics
Description

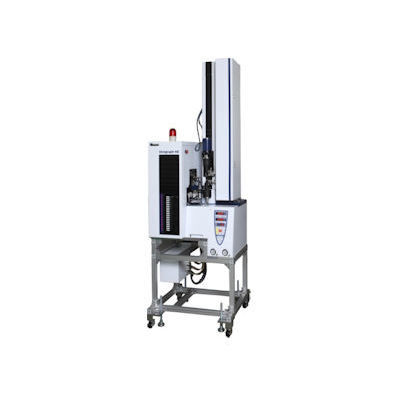

Strograph AE Film is a fully automated tensile testing machine which is designed exclusively for plastic films.
ISO 527-3
(Type 2 & 1B) Plastics — Determination of tensile properties — Part 3: Test conditions for films and sheets
JIS Z 1702 - Polyethylene films for packaging
Load capacity - 500N max.
Effective crosshead travel - approx. 650mm (850mm optional)
Speed range - 0.5 to 500mm/min.
Specimen feeder - Max. 100 specimens (250 specimens optional)
Dimensions - W800 × D760 × H2240mm
Weight (approx.) - 200kg
