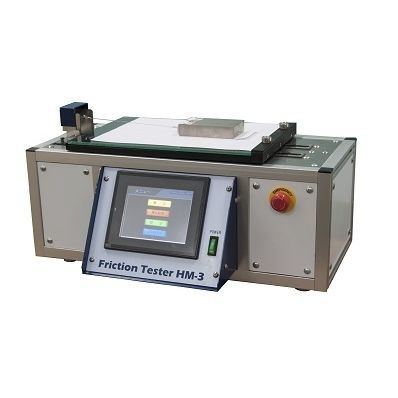

Friction testing machine HM-3

automaticfor filmfor paper

The HM-3 Friction Tester measures and digitally display friction coefficient of films and papers. Related standards ISO 8295 - Plastics — Film and sheeting — Determination of the coefficients of friction JIS K 7125 - Plastics−Film and sheeting− Determination of the coefficients of friction JIS P 8147 - Paper and board- Determination of the static and kinetic coefficients of friction Dimensions of table - W330 × D225 t=5 Table travel distance - 1 to 200mm Table speed range - 5 to 1500mm/min. Load cell - ● 10N ● 20N ● 50N (to be selected) Sled - ● 200g, 63×63mm ● 1000g, 60×100mm (to be selected) Power supply - Single-phase, AC100-240V, 50/60Hz, 0.2kVA Dimensions - W540 (max.630) × D350 × H280mm (W650 × D350 × H330mm, with optional safety cover) Weight (approx.) - 19kg OPTIONS Optional sled, 200g, 63.5 x 63.5mm - Reference standard: ASTM D1894 SP-M20 - Test speed, 5 to 2000mm/min. D3 - Testing software PS-BS1 - Mini printer ASC-LS - Safety cover TBL-MG - Magnet holder type table SL-MG2 - Sled with magnet holder, 63 x 63mm, 200g SL-MG1 - Sled with magnet holder, 60 x 100mm, 1000g
