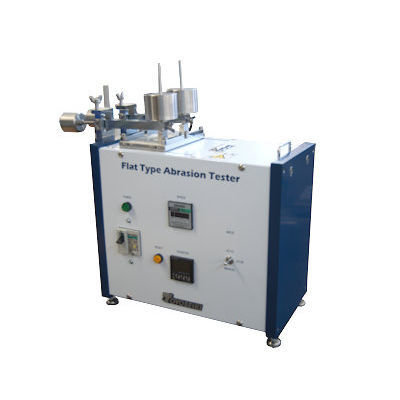

Abrasion tester 391

The Flat Surface Abrasion Tester evaluates the abrasion by adding abrasive load to the test specimen such as a fabric cloth, paint film and paper board under a specified conditions. Number of test specimen - 2 samples Test load - max. 2000g Weight - Arm self-weight 0g (by counter balance weight) Load weight 100g×2, 300g, 500g, 1000g Dimension of test specimen - 50 × 100mm Reciprocation distance of specimen table - 30, 40, 50, 60mm, variable Reciprocation speed of specimen table - approx. 10 to 70cpm, variable Abrader - W20 × T10 × 10mm (radius of end) Specimen arm - can be adjusted up and down (Adjustment distance 0 to 30mm) Counter - 5 digits preset counter Power supply - Single-phase, AC100V, 50/60Hz, 0.3kVA (or specify) Dimensions - W500 × D200 × H500mm Weight (approx.) - 25kg
