Coefficient of friction testing machine HM-3H
automaticfor filmfor plastics

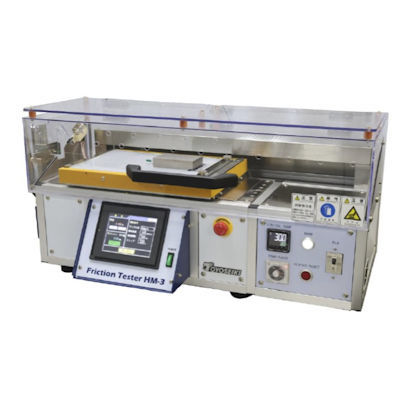

Coefficient of friction testing machine - HM-3H - Toyoseiki - automatic / for film / for plastics
Coefficient of friction testing machine - HM-3H - Toyoseiki - automatic / for film / for plastics
Coefficient of friction testing machine - HM-3H - Toyoseiki - automatic / for film / for plastics - image - 2
Add to favorites
Compare this product

Characteristics

Test type
coefficient of friction
Operating mode
automatic
Test material
for plastics, for film
Configuration
horizontal, benchtop

Description

The HM-3-H Friction Tester is designed to measure coefficient of friction of plastic films and papers on heated platen at temperature up to 200°C. Related standards ISO 8295 - Plastics — Film and sheeting — Determination of the coefficients of friction JIS K 7125 - Plastics−Film and sheeting− Determination of the coefficients of friction JIS P 8147 - Paper and board- Determination of the static and kinetic coefficients of friction Temperature range - RT(+20°C) to 200°C Dimensions of table - W330 × D225 t=5 Table travel distance - 1 to 200mm Table speed range - 5 to 1500mm/min. Load cell - ● 10N ● 20N ● 50N (to be selected) Sled - ● 200g, 63×63mm ● 1000g, 60×100mm (to be selected) Power supply - Single-phase, AC100V, 50/60Hz, 1kVA Dimensions - W845 × D465 × H415*mm (*H710mm, with optional safety cover) Weight (approx.) - 50kg
