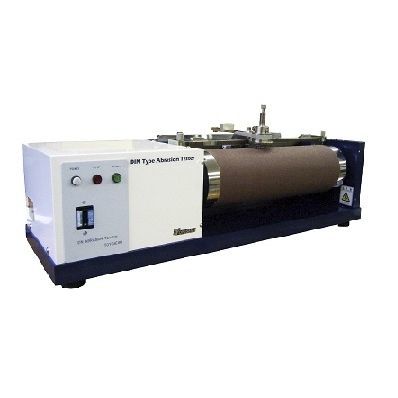

Abrasion testing machine 276automaticmaterialhorizontal
Add to favorites
Compare this product
Characteristics
- Test type
- abrasion
- Operating mode
- automatic
- Test material
- material
- Configuration
- horizontal
- Other characteristics
- rotating
Description
DIN Abrasion Tester evaluates abrasion resistance of rubber specimens.
ISO 4649 - Rubber, vulcanized or thermoplastic — Determination of abrasion resistance using a rotating cylindrical drum device
Test load - 2.5 to 20N
Feed of specimen - 4.2mm per rotation
Diameter of drum - ∅150mm
Drum rotating speed - 40rpm
Power supply - Single-phase, AC100V, 50/60Hz, 0.5kVA (or specify)
Dimensions - W950 × D330 × H380mm
Weight - Approx. 50kg
