Abrasion tester 363
Add to favorites
Compare this product
Description

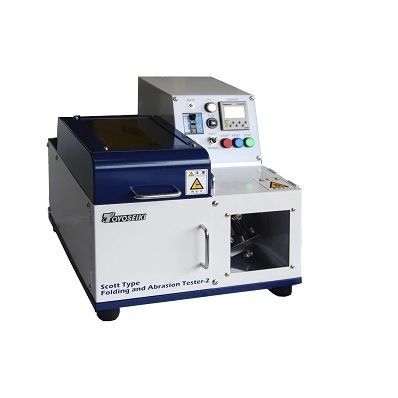

The Scott type Crease-Flex Abrasion Tester evaluates resistance against folding and abrasion of plastic coated textile, rubber coated cloth and vinyl leather, etc.
JIS K 6404-6 - Testing methods for rubber-or plastics-coated fabrics−Part 6 : Crease-flex test
JIS L 1096 - Testing methods for woven and knitted fabrics
Load range - Max. 49N
Dimension of specimen - W25 × L120mm
Speed - 120cpm
Power supply - Single-phase, AC100V, 50/60Hz, 0.5kVA (or specify)
Dimensions - W310 × D350 × H300mm
Weight - Approx. 25kg
VIDEO
Catalogs
No catalogs are available for this product.
