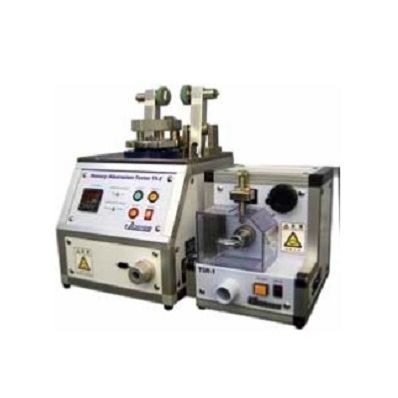

Rotational abrasion tester 430

The Rotary Abrasion Tester (Taber type Abrasion Tester) is widely-used in the abrasion test on a plane material. The abrasive level in contact side with two abrasive wheels is evaluated by loss in mass, thickness and etc. of the specimen. Rotating speed - 60rpm (50Hz) or 72rpm (60Hz) Load - 2.45N, 4.9N, 9.8N Counter - 6 digits Specimen holder - • E-100-125 (standard) • E-14, E-21, E-19 (optional) Selectable abrading wheels (abrading wheels are not standard accessories. To be selected at least 1 pair) • CS-10 • CS-17 • CS-5 • CS-10F • ST-11 (refacing stone) • H-10 • H-18 • H-22 • H-38 • S-32 (CS-0) • S-42 (sandpaper) • GC-150H • S-34 (zinc plate) • S-11 (refacing disc) Power supply - Single-phase, AC100V, 50/60Hz, 1kVA (or specify) Dimensions - W275 × D410 × H500mm Weight - Approx. 18kg
