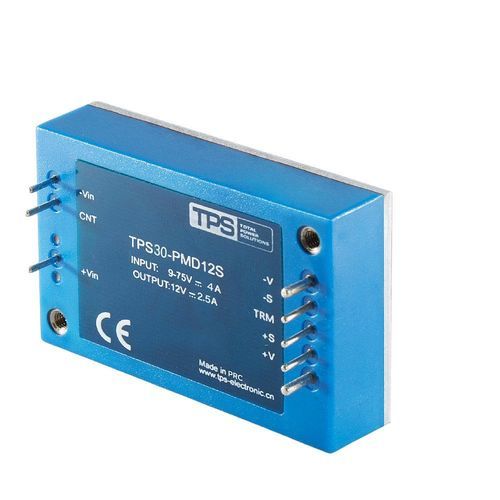

Isolated DC/DC converter TPS030-PMD12S

industrialfor telecom applicationsrugged

The TPS030-PMD12S is a high-performance isolated DC-DC power module designed for reliable and efficient power conversion in demanding applications. As part of the TPS030-150W series, this module delivers 30W output power with an input voltage range of 9-75 VDC and a stable 12V output capable of supplying up to 2.5A. It features 1500 VDC isolation between input and output, ensuring safety and compatibility in industrial, telecom, measuring, and military environments. With 85% efficiency, under-voltage lockout, over-temperature, over-voltage, and over-current protection, as well as remote on/off control, the TPS030-PMD12S offers a robust and versatile power solution in a compact industry-standard 1/4-brick package. Key Features Stable 12V Output: Provides 0 to 2.5A output current with ±1.5% voltage accuracy. High Efficiency: Achieves up to 85% efficiency, reducing power loss and heat generation. 1500 VDC Isolation: Ensures safety and noise immunity between input, output, and case. Remote On/Off Control: Supports positive logic remote enable/disable functionality. Specifications Parameter - Value Dimensions (L*W*H)(mm) - 37.2*57.9*12.7mm Efficiency - 85% Isolation Capacitance - 3500 pF typical Output Current - 0-2.5A Ripple_Noise_20MHz BW - 120 mV pk-pk max, 60 mV RMS
