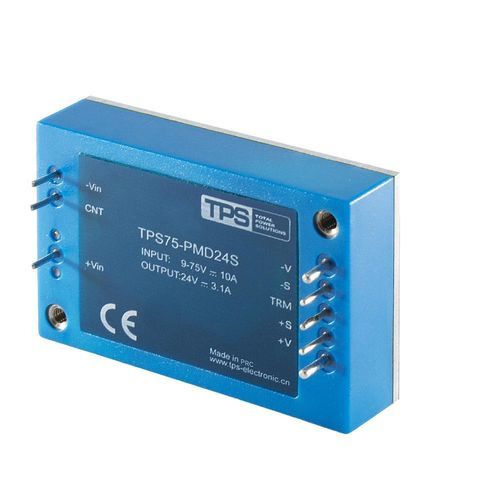

Isolated DC/DC converter TPS075-PMD24S

printed circuitindustrialfor telecom applications

The TPS075-PMD24S is a high-performance 75W isolated DC-DC power module from the TPS030-150W series, designed to deliver efficient and reliable power conversion for demanding applications. This module accepts a wide input voltage range of 9-75 VDC and provides a stable 24V output, capable of delivering up to 3.1A of current. It achieves an exceptional efficiency of up to 89%, minimizing energy loss and heat dissipation. The module features robust 1500 VDC isolation between input and output, ensuring system safety and noise immunity. Comprehensive protection features include under-voltage lockout, over-temperature, over-voltage, and over-current protection. Additionally, it offers remote on/off control via positive logic and an external trim adjustment feature allowing output voltage adjustment within a ±10% range. Housed in a compact industry-standard 1/2-brick package, the TPS075-PMD24S is an ideal power solution for industrial automation, telecom equipment, measuring instruments, and military systems. Key Features High Power Density: Delivers 75W of continuous power with a 24V output and up to 3.1A current. Broad Input Range: Operates from 9 to 75 VDC, accommodating various DC source configurations. High Efficiency: Achieves up to 89% efficiency, optimizing power conversion and thermal performance. Safety Isolation: Provides 1500 VDC minimum isolation (Input/Output, Input/Case, Output/Case) for enhanced safety and noise rejection. Comprehensive Protections: Includes under-voltage lockout (power up at 9V, down at 7.5V), over-temperature shutdown (~100°C), over-voltage protection (115-140% trip range), and over-current limit (105-200%).
