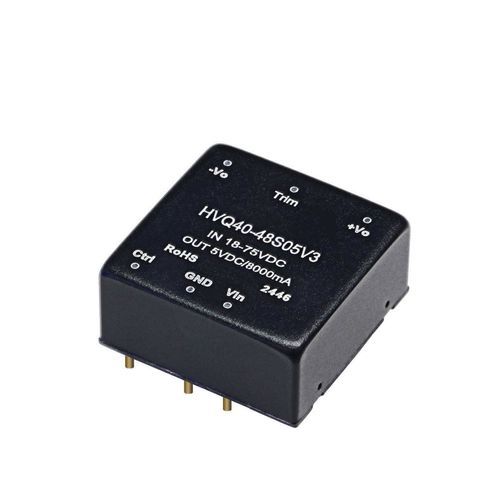

4:1 input voltage range DC/DC converter TPS-HVQ4048S05V3

printed circuitindustrialfor the automobile industry

The TPS-HVQ4048S05V3 is a high-reliability member of the TPS-HVQ40 Series DCDC Converter, designed to meet the rigorous demands of industrial and automotive applications. It belongs to a versatile product family that includes models like the TPS-HVQ4024S03V3 DCDC module, TPS-HVQ4024S05V3 converter, and TPS-HVQ4048S12V3 power supply, ensuring consistent performance and seamless system integration. As a 1X1 package DCDC converter, it features a compact design, ideal for space-constrained installations. Operating across an extended temperature range of -40°C to +105°C, it stands out as a -40°C to +105°C DCDC module, guaranteeing stable operation in extreme environmental conditions. With an isolation voltage of 1500VDC, it qualifies as a 1500VDC isolation converter, enhancing electrical safety in critical systems. Boasting 92% efficiency, it is a 92% high efficiency DCDC converter, optimizing energy utilization for reduced power loss. Equipped with a 4:1 ultra-wide input voltage range, it functions as a 4:1 ultra-wide input voltage converter, accepting 48VDC (18-75VDC) input (part of the 48VDC (18-75) input converter category) and also compatible with 24VDC (9-36VDC) input (falling under 24VDC (9-36) input DCDC). It provides versatile output voltages including 3.3V, 5V, 12V, 15V, 24V, and 28V, covering the 3.3V 5V 12V 15V 24V 28V output range.
