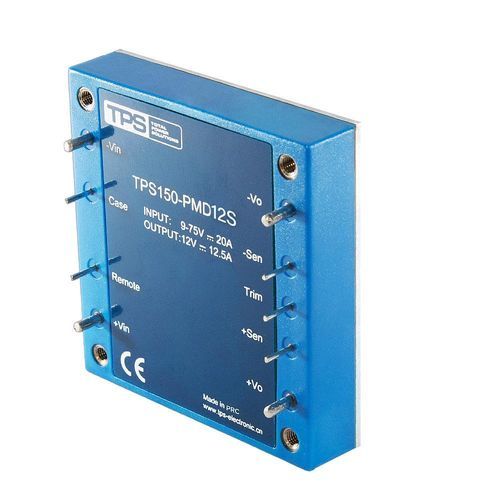

DCDC power module TPS150-PMD12S

The TPS150-PMD12S is a high-power 150W isolated DC-DC power module, representing the top tier of the TPS030-150W series. Engineered for demanding applications requiring substantial power delivery, this module accepts a wide input voltage range of 9-75 VDC and provides a stable 12V output, capable of delivering up to 12.5A of current. It maintains high efficiency of up to 88%, effectively managing thermal performance under full load. The module features robust 1500 VDC isolation between input and output, ensuring system safety and signal integrity. Comprehensive protection mechanisms include input under-voltage lockout, over-temperature, over-voltage, and over-current protection. It also offers system control flexibility through positive logic remote on/off and an external output voltage trim function with a ±10% adjustment range. Housed in a larger industry-standard package to accommodate the higher power level, the TPS150-PMD12S is the ideal power solution for high-power industrial automation, telecom infrastructure, precision measuring instruments, and rugged military systems. Key Features Wide Input Voltage Range: Operates from 9 to 75 VDC, compatible with various DC sources including battery packs. High Efficiency: Achieves up to 88% efficiency, reducing energy loss and heat dissipation. Robust Safety Isolation: Provides 1500 VDC minimum isolation (Input/Output, Input/Case, Output/Case) for enhanced safety and noise immunity. Comprehensive Protections: Includes under-voltage lockout (power up at 9V, down at 7.5V), over-temperature shutdown, over-voltage protection (115-140% trip range), and over-current limit (105-200%).
