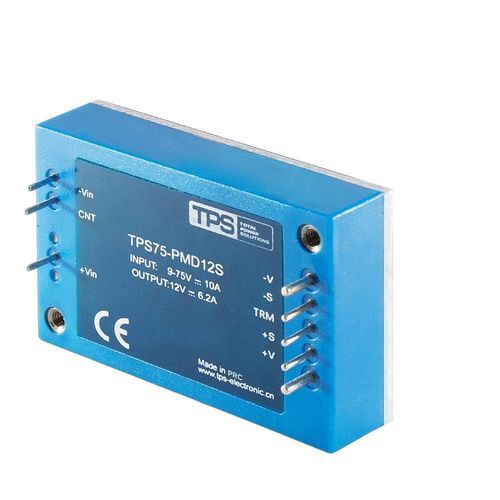

Galvanically-isolated DC/DC converter TPS075-PMD12S

printed circuittelecom networkindustrial

The TPS075-PMD12S is a high-efficiency 75W isolated DC-DC power module from the TPS030-150W series. It is engineered to deliver robust and reliable power conversion for a wide range of industrial and communication applications. This module accepts a broad input voltage of 9-75 VDC and provides a tightly regulated 12V output, capable of supplying up to 6.2A of current. With a high efficiency of up to 89%, it minimizes power loss and heat generation. The module boasts a minimum isolation of 1500 VDC between input and output, ensuring system safety and noise immunity. It is equipped with comprehensive protection features including under-voltage lockout, over-temperature, over-voltage, and over-current protection, and includes remote on/off control capability. Housed in a compact industry-standard 1/2-brick package, the TPS075-PMD12S offers a perfect balance of power, performance, and protection for demanding environments. Key Features Premium Efficiency: Achieves up to 89% efficiency, reducing energy waste and thermal load. Safety Isolation: Features 1500 VDC minimum isolation (Input/Output, Input/Case, Output/Case) for enhanced safety. Comprehensive Protections: Includes under-voltage lockout (power up at 9V, down at 7.5V), over-temperature, over-voltage (115-140% trip range), and over-current (105-200% limit) protection. Remote Control: Supports remote on/off functionality for flexible power management. Industry Standard Package: Compact 1/2-brick footprint (37.2x57.9x12.7 mm) for easy system integration. Specifications Parameter - Value Dimensions (L*W*H)(mm) - 37.2*57.9*12.7mm Efficiency - 89% Isolation Capacitance - 3500 pF typical Output Current - 0-6.2A
