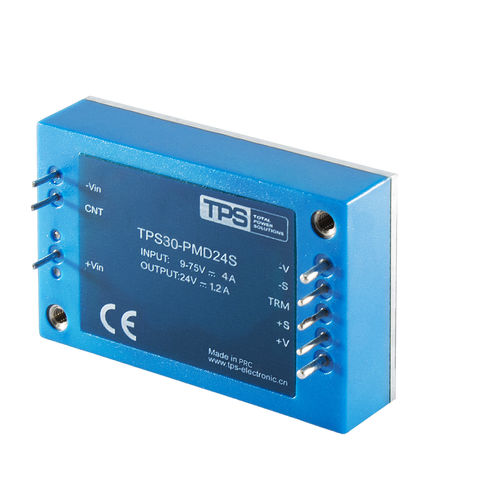

Isolated DC/DC converter TPS030-PMD24S

printed circuitindustrialfor telecom applications

The TPS030-PMD24S is a reliable and efficient 30W isolated DC-DC power module, forming part of the versatile TPS030-150W series. This module accepts a wide input voltage range of 9-75 VDC and provides a stable 24V output, capable of delivering up to 1.2A of current. It features high 1500 VDC isolation between input and output, ensuring operational safety and noise immunity in demanding environments. With an efficiency of up to 85%, it incorporates comprehensive protection features including input under-voltage lockout, over-temperature, over-voltage, and over-current protection. The positive logic remote on/off control adds flexibility for system power management. Housed in a compact industry-standard 1/4-brick package, the TPS030-PMD24S is engineered for robustness in industrial automation, telecom communication, measuring equipment, and military applications. Key Features High Efficiency: Achieves up to 85% efficiency, optimizing power usage and thermal performance. Robust Isolation: Provides 1500 VDC minimum isolation (Input/Output, Input/Case, Output/Case) for enhanced safety. Remote Control: Features positive logic remote on/off for convenient system power control. Industry Standard Package: Compact 1/4-brick footprint (37.2x57.9x12.7 mm) for easy integration into standard systems. Specifications Parameter - Value Dimensions (L*W*H)(mm) - 37.2*57.9*12.7mm Efficiency - ＞85% Isolation Capacitance - 2500 pF typical Output Current - 0-1.2A Ripple_Noise_20MHz BW - 100 mV RMS, 280 mV pk-pk max
