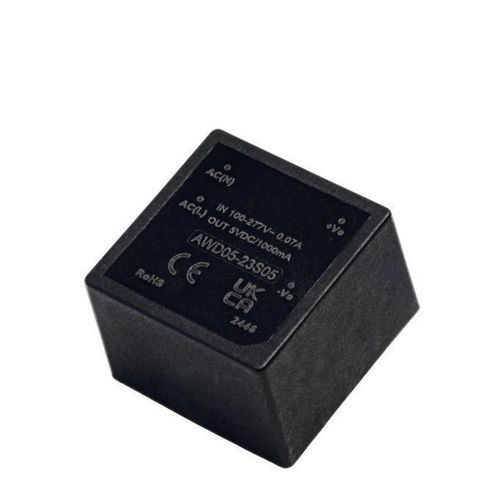

Compact AC-DC converter TPS-AWD0523S05

industrial

The TPS-AWD0523S05 is a highly reliable modular power supply and AC-DC converter that efficiently converts AC to DC power, serving as a compact DC power module and DIP package module for industrial applications; as the TPS-AWD0523S05 5W model, it features a wide 85-305VAC input module and 100-430VDC input module, delivers 5VDC output with 1000mA output module capacity (ensuring precision via ±2% voltage accuracy module, ±0.5% line regulation module, and ±1.0% load regulation module), incorporates 4000VAC isolation module for enhanced safety, achieves up to 78% full-load efficiency with ≤120mV ripple noise module performance, supports -40~+85℃ temp module operation, consumes only 0.10W low standby power, offers sustainable short-circuit protection and self-recovery, complies with IEC/UL62368-1 certified module and CLASS II safety module standards, meets CISPR32/EN55032 Class B EMC, utilizes natural air cooling module, boasts >260,000h MTBF module reliability, and is housed in a 25.4x25.4x16.1mm compact module weighing 23g light weight module, making it ideal for space-constrained and harsh environment applications. Key Features Wide Input Range: Supports 85-305VAC and 100-430VDC input, adaptable to various power sources. Precise Output: Provides 5VDC/1000mA output with ±2% voltage accuracy, ±0.5% line regulation, and ±1.0% load regulation for stable performance. High Safety & Isolation: 4000VAC isolation and CLASS II safety classification ensure operational safety. Efficient & Low Noise: Delivers 78% typical efficiency and ≤120mV ripple noise for clean power output.
