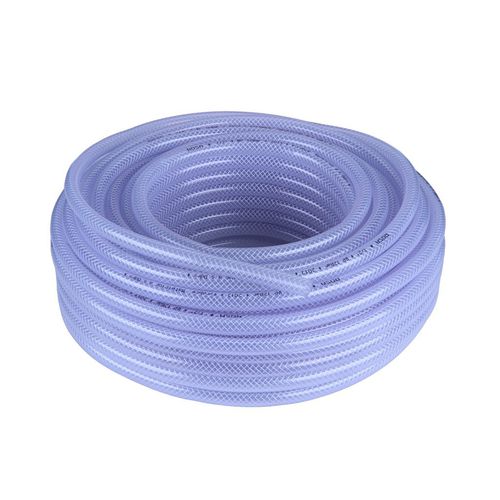

Water hose RPU series
for chemical productsfoodstufffor fuel

water hose
water hose
water hose
water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water, for chemical products, foodstuff, for fuel, for oil, grease, for air
Material
rubber, PVC, polyester, polyurethane
Applications
FDA
Other characteristics
reinforced, spiral wire
Inner diameter

Max.: 25 mm
(0.984 in)

Min.: 6.3 mm
(0.248 in)

Outer diameter

Max.: 33 mm
(1.299 in)

Min.: 11.5 mm
(0.453 in)

Pressure

Max.: 19 bar
(275.572 psi)

Min.: 7 bar
(101.526 psi)

Temperature

Max.: 70 °C
(158 °F)

Min.: -30 °C
(-22 °F)

Delivered length

30 m
(98'05" )

Description

General purpose hoses as the name suggests are widely used for: air, water, non-aggressive chemicals, oil and fuel. Some of them are also used for food products. Made of such materials as: PVC, PU, rubber with a spiral, braid reinforcement (for pressure resistance). If PVC hose is chosen for a particular application the drop of pressure in higher temperatures must be taken into consideration! Fittings for general purpose hoses (see chapter “INDUSTRIAL FITTINGS - fittings, connectors”, connectors) must be assembled with the use of ferrules (crimped with the use of crimping machines) clamps and worm drive hose clamps. For different applications of hoses, see other chapters of “INDUSTRIAL HOSES”. Internal layer: Transparent polyurethane Reinforcement: Polyester-nylon braid External layer: Transparent polyurethane General purpose, highly flexible hose used for water, air, oils, greases, petroleum products, chemicals, granulates and food products (according to FDA 21 CFR 175.105 requirements).
