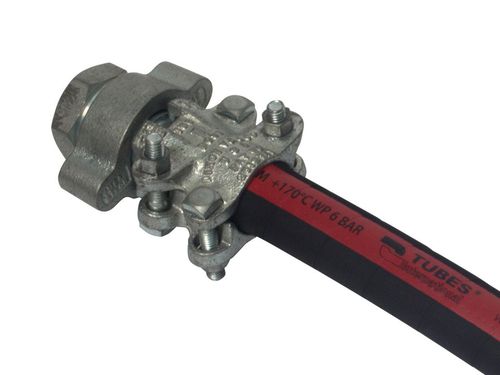

Hot water hose STEAM STAR / 6
transferEPDMsynthetic

hot water hose
hot water hose
Add to favorites
Compare this product

Characteristics

Use
for hot water
Applications
transfer
Material
EPDM, synthetic
Other characteristics
special
Inner diameter

Max.: 51 mm (2.008 in)

Min.: 13 mm (0.512 in)

Outer diameter

Max.: 67 mm (2.638 in)

Min.: 21 mm (0.827 in)

Pressure

6 bar (87.023 psi)

Temperature

Max.: 170 °C (338 °F)

Min.: -40 °C (-40 °F)

Description

Therefore: correctly match a hose and fittings with a specific application; follow installation, maintenance, storage and control recommendations as well as health and safety guidance! Use the following hoses to transfer steam: special rubber steam hoses; steel hoses; PTFE hoses; In general, rubber steam hoses are used to make longer hose assemblies and they are always mounted with steam safety clamps. Steel and PTFE are most suitable to make shorter hose assemblies, permanently mounted in machines, with welded fittings (steel hoses) or crimped (PTFE hoses). Recommendations and guidelines concerning selection and operation of rubber steam hoses are available in the attachment “Steam rubber hoses handling manual and safety guidance”. STEAM STAR / 6 Internal layer: Black EPDM rubber Reinforcement: Synthetic braid External layer: Black EPDM rubber Working temp.: From -40°C up to +170°C Delivery hose designed to transfer hot water and saturated steam. External layer resistant to weather conditions, high temperature and ozone
