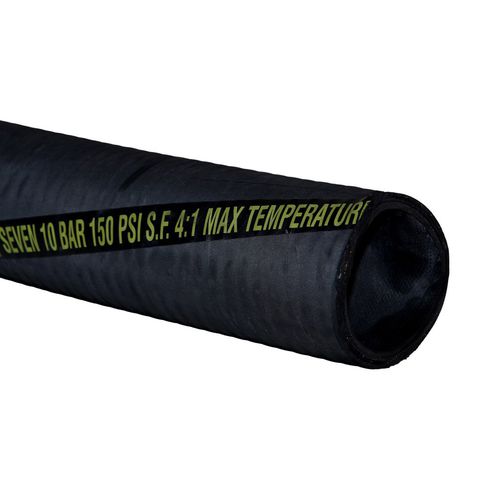

Bulk material hose SEVEN®synthetic rubbersteelsuction
Add to favorites
Compare this product
Characteristics
- Use
- for bulk materials
- Material
- synthetic rubber, steel
- Applications
- suction, transfer, for petrochemical applications
- Other characteristics
- flexible, abrasion-resistant, weather-resistant, oil-resistant, rugged, reinforced, spiral wire, steel-braided
- Inner diameter
Max.: 102 mm
(4.016 in)Min.: 19 mm
(0.748 in)- Outer diameter
Max.: 125 mm
(4.921 in)Min.: 32 mm
(1.26 in)- Pressure
10 bar
(145.038 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -15 °C
(5 °F)- Delivered length
60 m, 120 m
(196'10" , 393'08" )
Description
Internal layer: Black polyacrylic compound
Reinforcement: Steel braid, steel wire helix
External layer: Black synthetic rubber
Robust, flexible suction-delivery hose designed to transfer liquid asphalt. Excellent for reloading applications. External layer resistant to abrasion, oil, ozone, tar and weather conditions. Available manufactured according to EN 13482:2001 (diameters DN51, DN63, DN 76, DN 102).
Asphalt hoses – developed specially for the loading/unloading and transfer of liquid bituminous minerals: asphalts, asphalt emulsions ( temperature up to 200°C). They are used on tank trucks or rail tankers, fitted on loading and unloading terminals and asphalt mix plants.
The inner layer made of polyacrylic rubber (ACM). Reinforced with braid or optionally steel wire helix. The outer layer resistant to oil, tar, weather conditions and abrasion.
