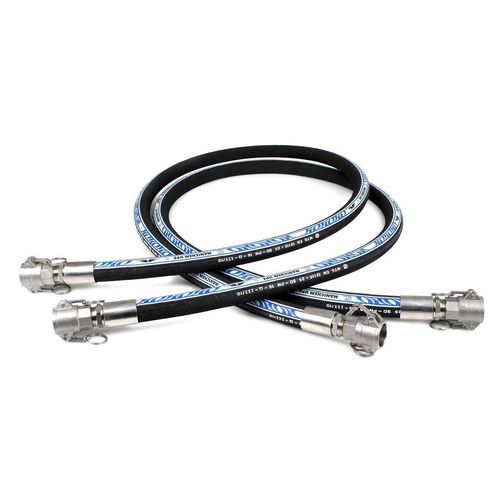

FDA hose MT-MANICHEM-M series
for solventsfor paintfor acids

FDA hose
FDA hose
FDA hose
Add to favorites
Compare this product


Characteristics

Use
for solvents, for paint, for acids, for hydrocarbons
Material
EPDM, steel, synthetic, polyethylene (PE)
Applications
transfer, cleaning, for chemical applications, FDA, for the pharmaceutical industry
Other characteristics
vacuum
Inner diameter

Max.: 150 mm
(5.906 in)

Min.: 6 mm
(0.236 in)

Outer diameter

Max.: 174 mm
(6.85 in)

Min.: 16 mm
(0.63 in)

Pressure

Max.: 64 bar
(928.242 psi)

Min.: 12 bar
(174.045 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -35 °C
(-31 °F)

Delivered length

40 m
(131'02" )

Description

Internal layer: Black & white UPE polyethylene Reinforcement: Synthetic braid, steel wire helix External layer: Black EPDM rubber Suction-delivery hose developed to convey aggressive chemicals. Low coefficient of friction during medium transfer. The internal layer is antistatic and compliant with FDA, D.M. 21/03/73 EU 10/2011 standards. The external layer is antistatic (R <106Ω), resistant to abrasion, ozone and weather conditions. It ensures distribution of electrostatic charge through the hose wall - R <109Ω (not only on the surface). Steam cleaning at temp. +130°C is permitted for a maximum of 30 min. Marked with Ex symbol (intended for use in potentially explosive zones). Manufactured according to EN12115:11 and EN 50014/ IEC 60079-0. Vacuum 0.9 bar Chemical hoses are intended for liquid chemicals both organic and inorganic (acids and bases, salt solutions, hydrocarbons, paints and varnishes, solvents, etc.) They are used for the transfer of chemicals in chemical processing, transfer and loading/unloading of liquid chemicals (e.g. tank trucks, rail tankers, IBC containers), for diverse technological processes in the chemical, food, pharmaceutical industry, for numerous other industrial processes but also in laboratories. The inner hose layer must be sufficiently resistant to chemical corrosion.
