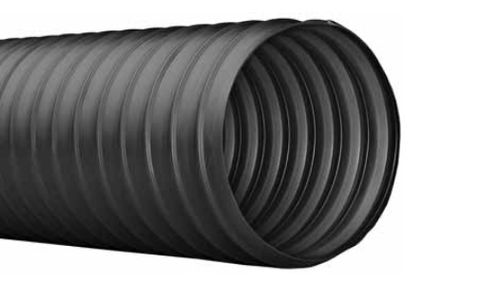

Steel hose SC-P2PP series

polypropylenetransferfor chemical applications

Material: Black polypropylene Wall thickness: 0.4 mm Reinforcement: Steel wire helix Lightweight, very flexible hose of good chemical and UV radiation resistance; halogen-free. Designed to remove air, fumes and gases. Used in ventilation and air-conditioning systems in automotive industry. Other diameters available in the range of 30 ÷ 610 mm. SE version - flame retardant, compliant with DIN 4102 B1. Lightweight, flexible hoses intended to transfer chemically aggressive fumes, solvent vapours and gases. Made of: polyethylene, polypropylene and fabrics coated with some other plastic materials (e.g. PTFE). Reinforced with steel wire helix or steel strip helix (CLIP type hoses). An antistatic version compliant with TRBS 2153 and flame-retardant version (DIN 4102 B1) are available. Chemically resistant ducting hoses are widely used in chemical industry, petrochemical industry, varnish industry, paper industry and pharmaceutical industry. In laboratories, fume cupboards are fitted with the extraction hoses. So as to select the right hose in terms of its chemical resistance, it is essential to gather the following data: type of medium (fumes transferred by the hose), fumes temperature, working pressure (vacuum). The safety data sheet of chemical substance is critical for the proper selection. Check if there is a risk of static charges build-up, particularly for operation in a determined potentially explosive zone.
