Extended coverage sprinkler SW series

standard responseside mounted

Overview

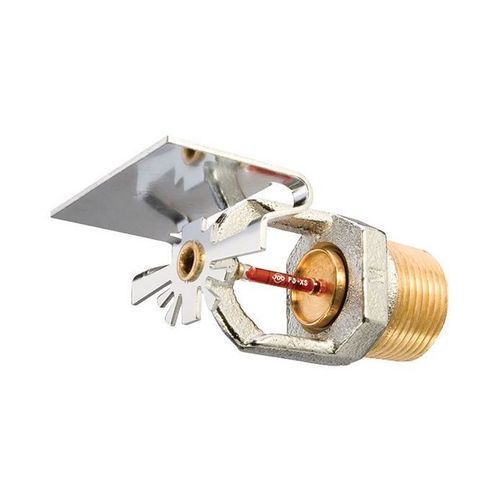

Model SW-20 and SW-24 horizontal sidewall sprinklers are decorative glass-bulb sprinklers designed for use in ordinary hazard occupancies per NFPA 13. 11.2 K-factor extended coverage, standard response sprinklers suitable where aesthetics or building construction preclude the use of pendent or upright sprinklers.

Key product data

• Orientation: Horizontal sidewall
• K-Factor: 11.2
• Temperature Rating: Up to 200°
• Response: Standard
• Hazard: Ordinary

Features

• SW-20: Listed to a 16 ft. (4.9 m) wide and a 20 ft. (6.1 m) throw maximum coverage area
• SW-24: Listed to a 16 ft. (4.9 m) wide and a 24 ft. (7.3 m) throw maximum coverage area
• UL and C-UL Listed, NYC Approved
• For 11.2 K-factor extended coverage ordinary hazard horizontal sidewall standard response sprinklers (SIN TY5332, TY5337), see TFP230 for technical information and listing details

Benefits

• Dependable — Tyco sprinklers help ensure that your commercial occupancy has fire protection coverage when needed.
• Efficient — Coverage areas meet your project requirements.
• Trusted Performance — Tyco products have helped protect spaces for more than 130 years.

Technical specifications

• Orientation: Horizontal sidewall
• K-Factor: 11.2
• Temperature Rating: Up to 200°
• Response: Standard
• Hazard: Ordinary
• Listings and Approvals: UL and C-UL Listed, NYC Approved
• SIN Numbers: TY5332, TY5337
• Thread: 3/4 inch
• Wrench: W3
• SW-20 maximum coverage: 16 ft (4.9 m) wide × 20 ft (6.1 m) throw
• SW-24 maximum coverage: 16 ft (4.9 m) wide × 24 ft (7.3 m) throw
