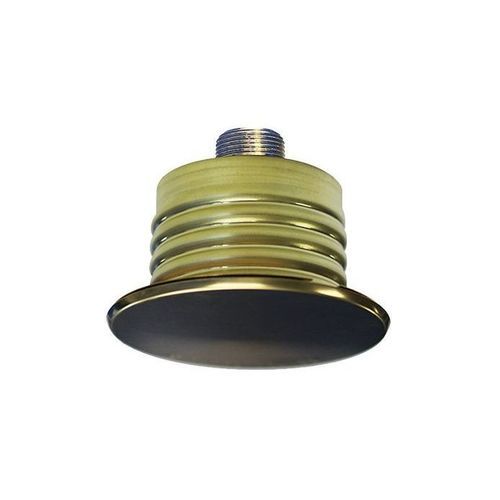

Standard response sprinkler RFII MRI

hangingwater

Overview
The Tyco® RFII-MRI non-magnetic sprinkler is intended for use inside MRI system rooms. The sprinkler was tested up to 7 Tesla, allowing it to withstand more than twice the magnetic strength of a standard MRI apparatus (typically 3 Tesla). The Tyco® RFII-MRI series comprises 5.6 K-factor, non-magnetic, concealed-pendent sprinklers available in quick-response (3-mm bulb) and standard-response (5-mm bulb) variants. Each full assembly consists of a sprinkler/support cup assembly and a separately ordered cover plate/retaining ring assembly. The separable two-piece design enables installation and pressure testing of the fire protection system before installing a suspended ceiling or applying a finish to a fixed ceiling, allows removal of suspended ceiling panels for access without shutting down the system, and provides 1/2 inch (12.7 mm) of vertical adjustment for sprinkler drop length flexibility.

Product
Model RFII-MRI Standard Coverage Sprinklers — 5.6 K-factor non-magnetic concealed pendent sprinklers

Product Data
Orientation: Concealed Pendent
K-Factor: 5.6
Temperature Rating: Up to 200°F (93°C)
Response: Standard, Quick

Features

• Non-magnetic sprinkler ideal for MRI rooms
• UL and C-UL Listed
• Internally threaded closure with ½ inch (12.7 mm) of adjustment
• 5.6 K-factor concealed pendent design; quick-response (3-mm bulb) and standard-response (5-mm bulb)
• Separable two-piece assembly: sprinkler/support cup assembly and cover plate/retaining ring assembly for flexible installation and ceiling access

Benefits

• Flexible — This non-metallic sprinkler is suitable for sensitive environments such as MRI rooms
• Decreased Risk — Concealed design reduces chance of accidental activation or damage
• Trusted Performance — Tyco® products have a long track record in fire protection

Specifications

• Occupancy Type: Light Hazard, Ordinary Hazard
• K-Factor: 5.6
• Listings and Approvals: UL and C-UL Listed
• Note: See Technical Data Sheet for details
• SIN Numbers: TY3550, TY3530
• Thread: ½-inch (12.7 mm)
• Wrench: RFII
• Temperature Rating: Up to 200°F (93°C)
• Orientation: Concealed Pendent
• Response: Standard and Quick (3-mm bulb quick, 5-mm bulb standard)
