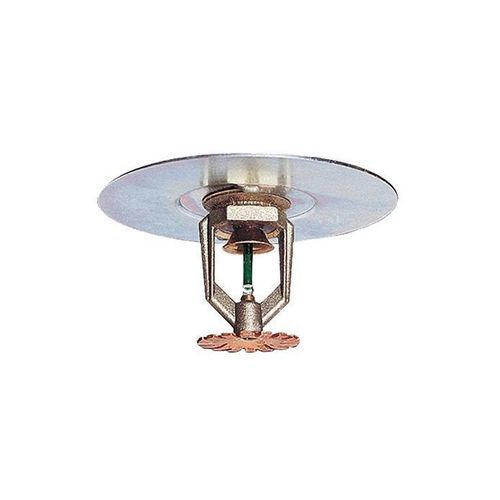

Storage sprinkler TY-FRB

uprighthangingwater

Overview
TY-FRB Intermediate Sprinklers are quick response units with a factory-assembled integral water shield. They are intended for rack storage sprinkler systems where intermediate sprinklers must be shielded from discharge by higher-level sprinklers that may operate earlier in a fire event.

Product Data
Orientation: Upright, Pendent
K-Factor: Up to 8.0
Temperature Rating: Up to 286° F
Response: Quick

Features

• Factory-assembled unit with an integral water shield
• Available for pendent and upright quick response models (TY3133, TY3231, TY4133, TY4231). See TFP356 for technical details and listings
• UL and C-UL Listed, FM and NYC Approved, Australian Watermark
• Also available as 5.6 K-factor upright and pendent models (TY313, TY323). See TFP357 for technical details and listings

Benefits

• Designed for storage hazards where intermediate sprinkler protection is required
• Factory-integrated shield ensures consistent installation and performance in rack storage layouts
• Tyco® product supported by extensive technical documentation and global listings

Technical specifications

• Hazard: Storage
• Listings and Approvals: UL and C-UL Listed, FM and NYC Approved, Australian Watermark
• Note: See Technical Data Sheet for installation requirements and hydraulic data
• SIN Numbers: TY3133, TY3231, TY4133, TY4231, TY313, TY323
• Thread: Up to 3/4-inch
• Wrench: W-Type 6
• Orientation: Upright, Pendent
• K-Factor: Up to 8.0
• Temperature Rating: Up to 286° F
• Response: Quick
