Storage sprinkler 231 series

standard responseuprighthanging

Overview

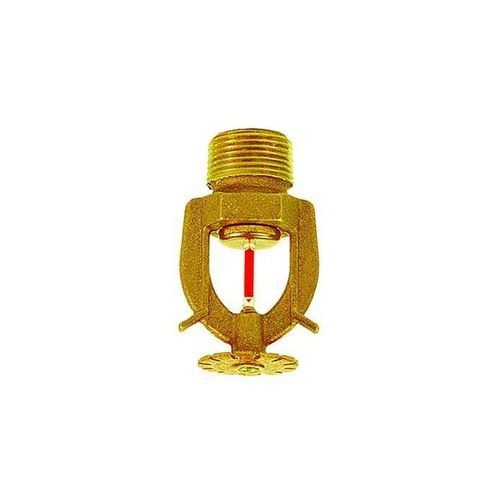

ELO-231 and K11-231 sprinklers are automatic frangible-bulb sprinklers designed for storage occupancies. Available in upright and pendent orientations, they produce a hemispherical water distribution pattern. K11-231 models (including K11-231B and K11-231FRB) replace the upright standard and quick response ELO-231B and ELO-231FRB models for improved application in high-density storage. Both families feature an extra-large orifice sized for storage hazards and are engineered to control high-challenge fires at relatively low hydraulic pressures. Adding a guard and shield converts an ELO-231 or K11-231 into an intermediate level version.

Key product data
Orientation: Upright, Pendent
K-Factor: 11.2
Temperature Rating: Up to 286° F
Response: Quick, Standard

Features

• Convertible to intermediate level by fitting a guard and shield
• K11-231B and K11-231FRB are upright storage variants replacing ELO-231B/ELO-231FRB for specific listings
• Extra-large orifice optimized for storage occupancies to control high-challenge fires with lower pressure
• Multiple approvals and listings: UL and C-UL Listed; FM, NYC, LPCB, and VdS Approved
• Consult applicable technical data sheets and listing details for model-specific installation and performance (SINs listed below)

Benefits

• Application-suited — Designed specifically for storage hazards where an extra-large orifice and hemispherical distribution are required
• Hydraulically efficient — Controls high-challenge fires at relatively low supply pressures
• Wide acceptance — Extensive listings and long field history with Tyco products

Technical specifications

• Hazard: Storage
• Listings and Approvals: UL and C-UL Listed; FM, NYC, LPCB, and VdS Approved
• Note: See Technical Data Sheet for full installation and performance details
• SIN Numbers: TY5130, TY5150, TY5811, TY5111, TY5211, TY5231, TY5251
• Thread: 3/4-inch, 1/2-inch
• Wrench: W-Type 3
