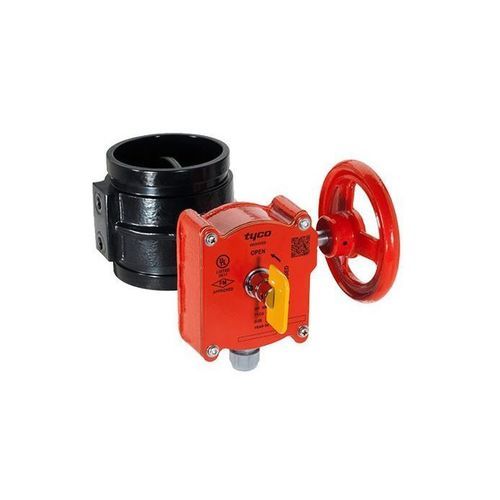

Butterfly valve BFV-300

manualisolationfor water

Overview
The BFV-300’s compact size provides flexibility for connection locations and straightforward replacement of older butterfly valves. Designed for easy installation and operation, the unit includes a scannable QR code linking to up-to-date product and technical information. Available configurations include supervisory open (to isolate an alarm valve), supervisory closed (bypass) and, regionally, a wafer-style variant with a visual open/closed indicator.

Features

• Direct replacement for existing butterfly valves
• Upstream and downstream tapping bosses for simple tie-in to deluge systems
• Listings and approvals: UL and C-UL Listed; FM and VdS Approved; CE Certified; Russian Fire Certificate; CNPP R1 Listed – APSAD; Listed by California State Fire Marshal
• Gearbox approximately 40% lighter than typical alternatives
• Scannable QR code provides instant access to latest documentation
• Actuated BFV-300 model available in Europe

Benefits

• Time-saving installation: tapping bosses enable fast connections to deluge and alarm valves
• Improved handling: compact, lighter gearbox simplifies installation and operation
• Application flexibility: grooved and wafer connections plus supervisory open/closed options cover diverse system requirements

Summary Table
Listings and Approvals: UL and C-UL Listed; FM and VdS Approved; CE Certified; Russian Fire Certificate; CNPP R1 Listed – APSAD; Listed by California State Fire Marshal
Sizes: 2 inch to 12 inch (DN50 to DN300)

Technical Specification
Connection Type: Grooved (standard)
Listings and Approvals: UL and C-UL Listed; FM and VdS Approved; CE Certified; Russian Fire Certificate; CNPP R1 Listed – APSAD; Listed by California State Fire Marshal
Pressure Rating: 2"–8" (DN50–DN200): 300 psi (20.7 bar); 10"–12" (DN250–DN300): 175 psi (12 bar)
Sizes: 2 inch to 12 inch (DN50 to DN300)
Valve Type: Butterfly Valve

Technical specifications

• Brand: Tyco Fire
• Model: BFV-300
• Connection types: Grooved (standard); wafer-style variant available (region-specific)
• Sizes: 2" to 12" (DN50 to DN300)
• Pressure rating: 2"–8" (DN50–DN200): 300 psi (20.7 bar); 10"–12" (DN250–DN300): 175 psi (12 bar)
• Listings & approvals: UL and C-UL Listed; FM and VdS Approved; CE Certified; Russian Fire Certificate; CNPP R1 Listed – APSAD; Listed by California State Fire Marshal
• Configurations: supervisory open, supervisory closed, grooved connections, wafer connections (wafer visual indicator for Russia)
• Gearbox: approximately 40% lighter than average alternatives
• Includes scannable QR code for access to product and technical information
• Upstream and downstream tapping bosses for easy connections
• Actuated BFV-300 model available in Europe
