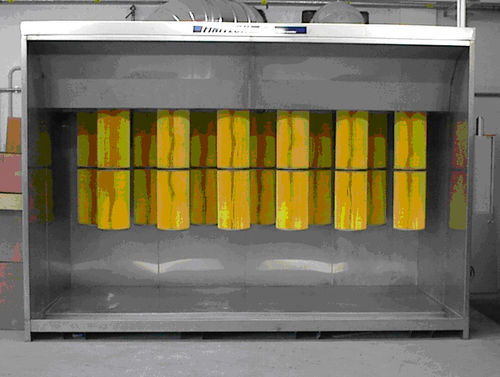

Powder coating booth with self-cleaning filter CVP

modularautomatic

Overview

• Dust collection tank made of press-bent and TIG-welded AISI 304 stainless steel sheet metal with a rear-sloping bottom to facilitate dust collection.
• Modular perimeter paneling made of press-bent stainless steel sheet metal panels.
• Filter unit positioned on the rear wall of the booth, composed of self-cleaning filters with high abatement efficiency.
• Automatic filter self-cleaning system complete with approved compressed air tank, blowing valves, blowing ramps, and a control unit for the intermittent opening of the valves.
• Electrical panel located outside the cabin, made in a watertight cabinet.

TECHNICAL DATA
Sizes: CVP 1-2-3-4-5-6 meters and SPECIALS
Material: stainless steel sheet
Execution: self-supporting panels
Assembly: Soldering + screws
Filtration efficiency: > 95%
Emission into the atmosphere of dry product: ≤ 3 mg./Nmc
Noise: ≤ 80 dbA

FEATURES / TECHNICAL SPECIFICATIONS

• Series: CVP (sizes 1-2-3-4-5-6 meters and specials)
• Material: AISI 304 stainless steel sheet (panels and dust tank)
• Dust collection: press-bent, TIG-welded stainless steel tank with rear-sloping bottom for dust recovery
• Perimeter paneling: modular, press-bent stainless steel panels, self-supporting
• Filter unit: rear-wall mounted, self-cleaning filters with high abatement efficiency (filtration efficiency > 95%)
• Automatic filter self-cleaning: includes compressed air tank, blowing valves, blowing ramps and control unit for intermittent valve operation
• Electrical panel: watertight cabinet mounted outside the booth
• Emission to atmosphere: ≤ 3 mg/Nmc (dry product)
• Noise level: ≤ 80 dB(A)
• Assembly method: soldering and screws
