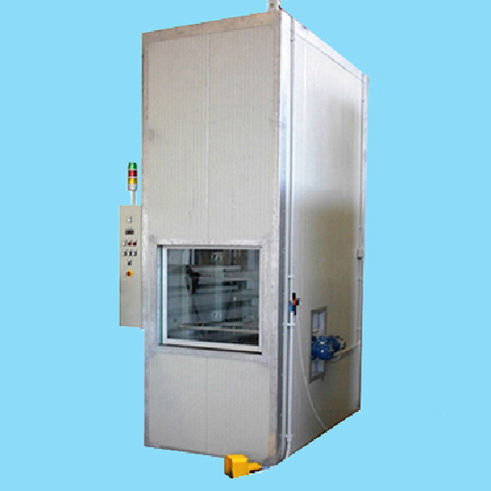

Hot air drying tunnel FAF 60

automaticfor metal parts

Overview
The FAF 60 automatic ovens are designed for drying painted parts within a continuous processing cycle. Painted parts are manually loaded, with their supports, into the dedicated loading slot. The loading door opens automatically via a foot pedal operated by the operator. Inside the oven, a part-holder rod mounted on the internal conveyor advances step by step, providing continuous rotation of parts as they pass through successive flash-off, drying and cooling zones before reaching the unloading position on the opposite side equipped with an automatic door.

Images

• Photographs show the FAF 60 from multiple angles, highlighting the loading slot, internal conveyor with part-holder rod, zone partitions and external automatic doors.

Technical specifications

• Model example: FAF 60
• Type: Automatic drying oven for painted parts in a continuous processing cycle
• Loading: Manual loading of painted parts with supports into oven slot; loading door opens automatically via foot pedal
• Conveyor: Internal conveyor with part-holder rod advancing stepwise and enabling continuous rotation of parts
• Process zones: Multiple flash-off zones, drying zone(s), cooling zone(s)
• Unloading: Opposite-side unloading position with automatic door
• Temperature variants: Medium temperature version Tmax 100°C; High temperature version Tmax 250°C
• Configurations: Number of zones and oven length configurable to production requirements

Applications

• Intended for industrial paint shops and finishing lines
• Commonly used in automotive components, metal fabrication, furniture and industrial equipment finishing
• Suitable for continuous production processes requiring controlled flash-off, drying and cooling stages
