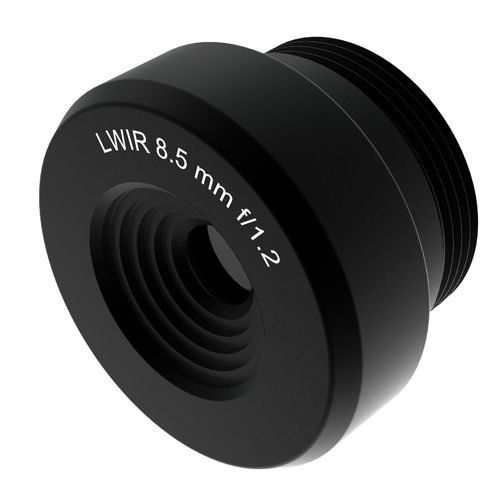

Fixed-focus camera objective 11095_100

wide-angleinfraredmachine vision

Umicore's GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog IR lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This passively athermalized super-wide-angle lens guarantees high resolution within an image circle of 14 mm. It fits 25 µm qVGA+ and 17 µm VGA detectors and smaller. Optical Properties F-number f/1.2 Transmission (iDLC) > 87% Transmission (HEAR) > 94% Focus range 0.4 m to infinity with refocus of 0.16 mm Waveband 8 - 12 µm Mechanical properties Mechanical shock MIL-E-5400T Mechanical shock (iDLC) MIL-E-5400T Mechanical shock (HEAR) MIL-E-5400T Weight 34.3 g Weight (iDLC) 34.3 g Weight (HEAR) 34.3 g Interface thread M25×0.5 Back focal length* 8.4 mm Flange back distance* 19.47 mm value applicable with 1 mm Ge window (not included) Environmental properties Sealing IP67 Sealing (iDLC) IP67 Sealing (HEAR) IP67 Solar radiation MIL-STD-810G Method 505.5 Vibration MIL-STD-810E Method 514.4 Proc I Cat 8 Vibration (iDLC) MIL-STD-810E Method 514.4 Proc I Cat 8 Vibration (HEAR) MIL-STD-810E Method 514.4 Proc I Cat 8 Operating temperature -40 °C to +80 °C Storage temperature -57°C to +105°C
