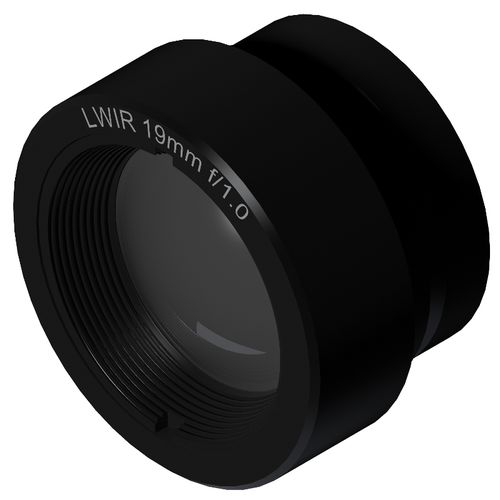

Fixed-focus camera objective 15056_100

infraredthermal imaginghigh-resolution

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog IR lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This ultralight, passively athermalized infrared lens offers superior performance and is suitable for use with 17 μm VGA detectors as well as the newer generation 12 μm detectors. Optical Properties F-number f/1.0 Transmission (iDLC) > 87% Transmission (HEAR) > 94% Focus range 1.4 m to infinity with refocus of 0.23 mm refocus Waveband 8 - 12 µm Mechanical properties Mechanical shock MIL-E-5400T Mechanical shock (iDLC) MIL-E-5400T Mechanical shock (HEAR) MIL-E-5400T Weight (iDLC) 31.2 g Weight (HEAR) 31.2 g Interface thread M25x0.5 Back focal length* 10 mm Flange back distance* 19.50 mm value applicable with 1 mm Ge window (not included) Environmental properties Sealing IP67 Sealing (iDLC) IP67 Sealing (HEAR) IP67 Solar radiation MIL-STD-810G Method 505.5 Vibration MIL-STD-810G Method 514.6C-II / Cat. 4 Vibration (iDLC) MIL-STD-810G Method 514.6C-II / Cat. 4 Vibration (HEAR) MIL-STD-810G Method 514.6C-II / Cat. 4 Operating temperature -40°C to +80°C Storage temperature -57°C to + 105°C
