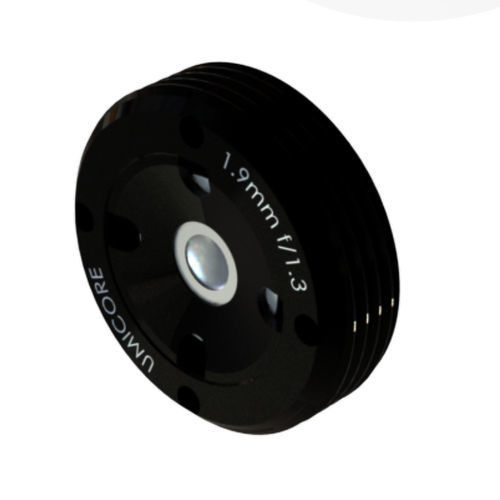

wide-angle camera objective / IR
15097_130

Add to MyDirectIndustry favorites
Compare this product
wide-angle camera objective / IR wide-angle camera objective / IR - 15097_130
{{requestButtons}}

Characteristics

  • Type :

    wide-angle

  • Other characteristics:

    IR

  • Focal length:

    1.9 mm (0.07 in)

Description

1.9 mm f/1.3 M10

Our Tessella™ lenses are produced by Umicore's unique wafer level molding technology. Here we combine small size and diffraction limited performance with a most cost-effective manufacturing method. Our range of M10 wide-angle lenses provide dedicated solutions for low-resolution thermal imaging and sensing applications.
This ultralight, passively athermalized infrared lens offers superior performance and provides the highly sought-after 90 degree field of view. It is extremely light weight and is suitable for use with 34 μm 80×80 sensors, or smaller, higher-resolution detectors.

Optical Properties

Product number
15097_130

Focal length
1.9 mm

F-number/Aperture
f/1.3

Transmission
> 95%

Focus range
0.05 m to infinity with refocus of 0.05 mm

Waveband
8 - 12 µm

Mechanical Properties

Weight
0.6 g

Interface thread
M10×0.5

Back focal length*
2.41 mm

Flange back distance*
N/A

*: value applicable with 0.725 mm Si window (not included)

Environmental Properties

Operating temperature
-40 °C to +80 °C

Storage temperature
-57 °C to +105 °C
