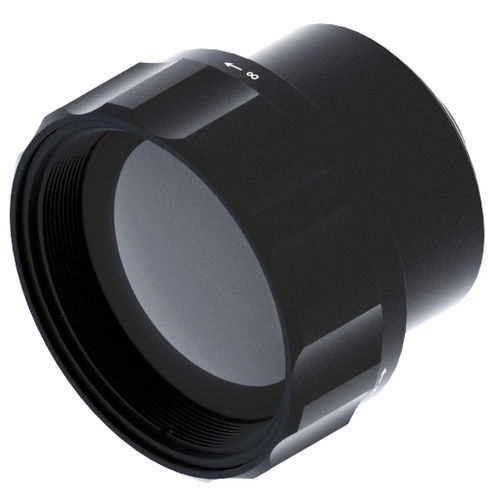

Fixed-focus camera objective 16024_140

infraredthermal imaginghigh-resolution

Umicore’s GASIR® infrared lenses have been developed for an easy fit with a wide range of camera cores. Our catalog lenses provide a cost-effective solution for high-resolution thermal imaging and sensing applications. This manual focus lens offers superior performance from 10 m out to infinity. Its lightweight and intuitive design make it a prime choice for your application. This lens is compatible with 17 μm VGA detectors and smaller. Optical Properties F-number f/1.1 Transmission (iDLC) > 87% Transmission (HEAR) > 94% Focus range 10 m to infinity over 342° focus movement Waveband 8 - 12 µm Mechanical properties Mechanical shock MIL-E-5400T Mechanical shock (iDLC) MIL-E-5400T Mechanical shock (HEAR) MIL-E-5400T Weight (iDLC) 368 g Weight (HEAR) 368 g Interface thread M34x0.5 Back focal length* 9.6 mm Flange back distance* 18.3 mm value applicable with 1 mm Ge window (not included) Environmental properties Sealing IP67 Sealing (iDLC) IP67 Sealing (HEAR) IP67 Solar radiation MIL-STD-810G Method 505.5 Vibration MIL-STD-810G Method 514.6C-II / Cat. 4 Vibration (iDLC) MIL-STD-810G Method 514.6C-II / Cat. 4 Vibration (HEAR) MIL-STD-810G Method 514.6C-II / Cat. 4 Operating temperature -40°C to +80°C Storage temperature -57°C to +105°C
